1
Engine displacement
750
2
Model
DORSODURO
3
Year
2016
4
Trim
Dorsoduro ABS
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
Gear box selector
by
Ignition unit

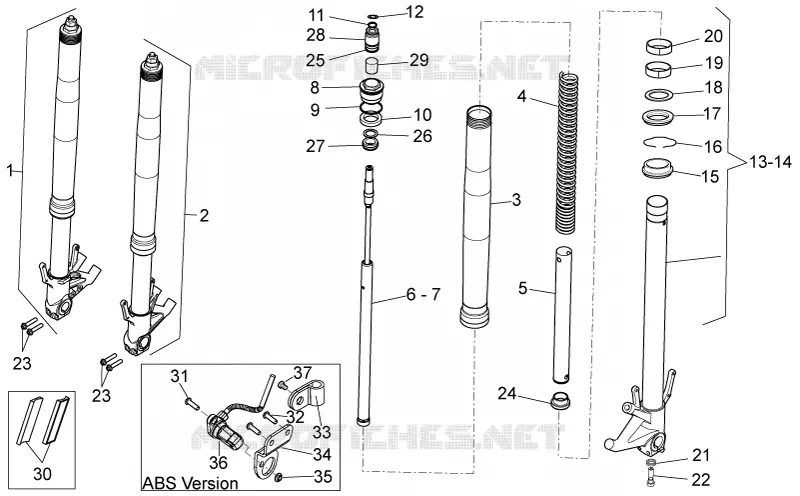

Front fork
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
RH hub cpl.
856900
Not Available
2
LH hub cpl.
856901
$473,14 Unit Price incl. VAT
3
Sleeve
890392
$176,37 Unit Price incl. VAT
4
Spring
890389
$17,29 Unit Price incl. VAT
5
Preload tube
890388
$8,17 Unit Price incl. VAT
6
RH plunger, complete
890390
$100,76 Unit Price incl. VAT
7
LH plunger, complete
890391
$122,82 Unit Price incl. VAT
8
Sleeve plug
890418
$17,01 Unit Price incl. VAT
9
O-ring
856034
Not Available
10
Rubber ring
856035
$2,08 Unit Price incl. VAT
11
O-ring
AP8123820
$3,65 Unit Price incl. VAT
12
Stop ring
AP8123821
$3,65 Unit Price incl. VAT
13
Hub+RH fork leg
890393
$254,01 Unit Price incl. VAT
14
Hub+LH fork leg
890399
$254,01 Unit Price incl. VAT
15
Dust cover
856040
Not Available
16
Circlip
856041
Not Available
17
Oil seal
890396
$8,14 Unit Price incl. VAT
18
Ring
856043
$0,86 Unit Price incl. VAT
19
Spring guide bush
890397
Not Available
20
Bush
890398
Not Available
21
Special washer
856046
$0,43 Unit Price incl. VAT
22
screw M10x1,5
895451
$0,65 Unit Price incl. VAT
23
Screw w/ flange M8x40
AP8152290
$3,65 Unit Price incl. VAT
24
Spring centering
856317
$4,75 Unit Price incl. VAT
25
O-ring
890417
$0,53 Unit Price incl. VAT
26
Washer
AP8123816
$3,65 Unit Price incl. VAT
27
Ring
AP8123815
$8,01 Unit Price incl. VAT
28
Spring regulator
890416
$10,71 Unit Price incl. VAT
29
Spring regulator Plate
890419
$2,92 Unit Price incl. VAT
30
Reflector, amber
GU05781630
$8,91 Unit Price incl. VAT
31
Screw w/ flange M5x15
AP8152273
$0,16 Unit Price incl. VAT
32
Hex socket screw
AP8150298
$3,65 Unit Price incl. VAT
33
Fairlead
859777
$1,01 Unit Price incl. VAT
34
Front plate
856557
$2,92 Unit Price incl. VAT
35
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
36
Sensor ABS
859792
Not Available
37
Screw M4x6
AP8201749
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
