Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Central stand - Connecting rod
by
Electrical system
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Stop switch
AP8124818
Not Available
2
Flasher unit
AP8124235
$14,18 Unit Price incl. VAT
3
Thermal switch
AP8124754
$54,27 Unit Price incl. VAT
4
Starter relay
AP8224057
$10,00 Unit Price incl. VAT
5
Relay 12V-20A
AP8212469
Not Available
6
Battery 12V-4Ah
AP8212110
Not Available
6
Battery
AP8124637
Not Available
7
Voltage regulator
AP8224296
Not Available
7
Voltage regulator
AP8224102
$68,85 Unit Price incl. VAT
8
Horn
AP8212611
$9,50 Unit Price incl. VAT
9
Main wiring harness
AP8224491
Not Available
9
Main wiring harness
AP8224401
Not Available
9
Main wiring harness
AP8224279
Not Available
9
Main wiring harness
AP8224320
Not Available
9
Main wiring harness
AP8224248
Not Available
10
Diode
AP8212382
$5,38 Unit Price incl. VAT
11
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
12
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
13
Relay rubber
AP8220546
$4,62 Unit Price incl. VAT
14
Fuse cable
AP8224073
$76,85 Unit Price incl. VAT
15
Rubber fuse box
AP8112811
$6,40 Unit Price incl. VAT
16
Rubber fuse box
AP8120754
$6,30 Unit Price incl. VAT
17
Fuse 15A
AP8112176
$5,38 Unit Price incl. VAT
18
Fuse 7,5A
AP8112244
Not Available
18
Fuse
AP8124857
Not Available
19
Breather pipe 4x8
AP8220263
Not Available
20
Heater wiring
AP8224326
Not Available
21
Rubber spacer *
AP8220283
$0,75 Unit Price incl. VAT
22
T bush
AP8121811
$3,38 Unit Price incl. VAT
23
Resistence with harness
AP8224170
$7,69 Unit Price incl. VAT
24
Pressure sensor
AP8224478
$95,29 Unit Price incl. VAT
25
Sensor support
AP8234210
Not Available
26
High quota wiring
AP8224492
Not Available
27
Injection wiring
AP8127477
$110,21 Unit Price incl. VAT

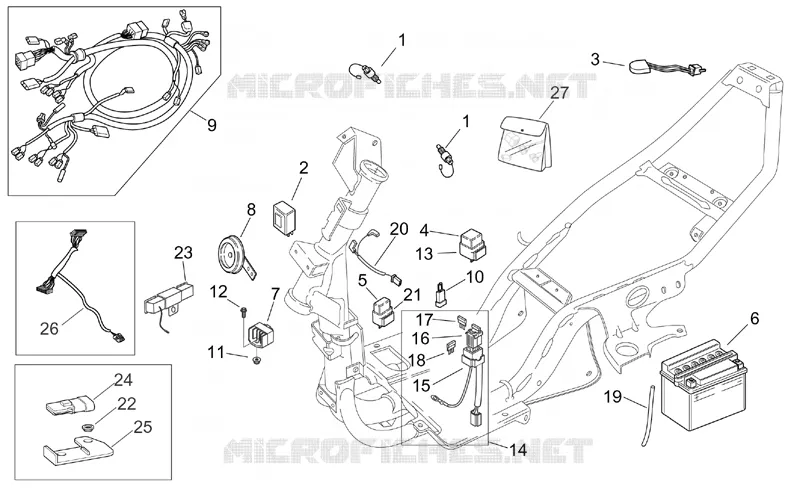

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
