Engine displacement
50
2
Model
SR
3
Year
2001
4
Trim
SR H2O (Ditech+Carb.)
5
Parts Catalog
Water pump
6

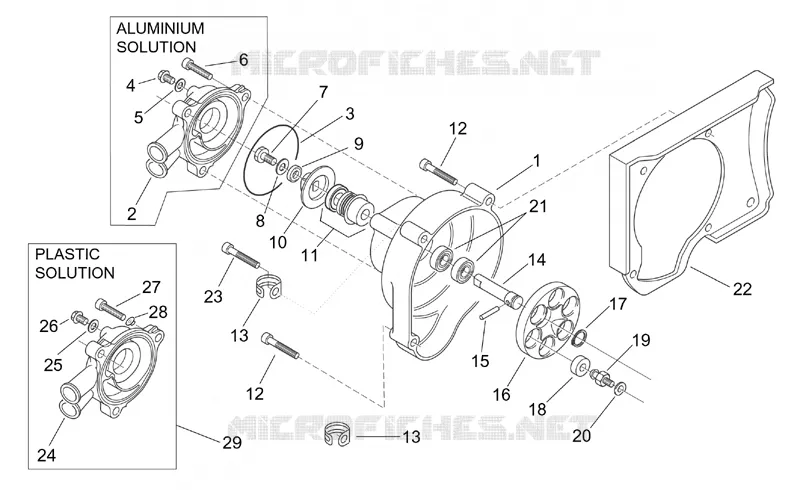

Parts Diagram
Parts Catalog
Crank-case (Ditech)
by
Acc. - Various
Water pump
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Flywheel cover, black
AP3LZA000108
$164,31 Unit Price incl. VAT
1
Flywheel cover, black
AP3LZA000023
$115,43 Unit Price incl. VAT
2
Alum.water pump casing, black
AP3LBA000130
Not Available
3
O-ring 65x2,1
AP3EAN000082
$3,65 Unit Price incl. VAT
4
Screw w/ flange
AP3AUN000124
Not Available
5
Aluminium washer
AP4EEN000063
Not Available
6
Hex socket screw
AP4ADN000016
$3,65 Unit Price incl. VAT
7
Impeller fixing screw
AP3ABN000092
Not Available
8
Elastic plate
AP2DHN000202
$3,65 Unit Price incl. VAT
9
Seal washer
AP3ECN000080
$3,65 Unit Price incl. VAT
10
Impeller
AP3LDA000109
Not Available
11
Pump mechanical seal
AP3LAA000173
$41,80 Unit Price incl. VAT
12
Hex socket screw
AP4ADN000016
$3,65 Unit Price incl. VAT
12
screw
AP4ADN000017
Not Available
13
Hose clamp
AP3AAN000054
$5,38 Unit Price incl. VAT
14
Impeller shaft
AP3LCA000101
$93,31 Unit Price incl. VAT
15
Roller d2,5x19,8
AP4FCN000095
Not Available
16
Pump impeller drive key
AP3LCA000166
Not Available
17
Circlip d12
AP4DAN000125
Not Available
18
Pump drive pin grommet
AP3LAA000100
$5,38 Unit Price incl. VAT
19
Pump impeller pin
AP3LAA000625
$3,65 Unit Price incl. VAT
19
Pump impeller pin
AP3LAA000102
Not Available
20
Washer
AP4DFN000033
Not Available
21
Ball bearing 6900
AP4GAN000103
$20,52 Unit Price incl. VAT
22
plate
AP3HAA000632
Not Available
23
Hex socket screw M6x40
AP8152003
$3,70 Unit Price incl. VAT
24
Plastic water pump casing
AP3LBA000587
$29,51 Unit Price incl. VAT
25
Paper gasket
AP3EDN000281
$5,38 Unit Price incl. VAT
26
Self-tap screw 5,5x13
AP4APN000267
Not Available
27
screw
AP4ADN000014
$3,65 Unit Price incl. VAT
28
T bush
AP3UAN000300
Not Available
