1
Engine displacement
50
2
Model
SR
3
Year
2003
4
Trim
SR H2O (Ditech+Carb.)
5
Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Front fork I
by
Front body II
Cylinder head
1
2
3
4
5
5
6
6
7
7
7
7
8
8
9
9
10
10
11
12
13
13
14
14
15
15
16
16
17
17
18
18
1
Cylinder head
AP3BBA000174
$86,99 Unit Price incl. VAT
2
Cylinder head
AP3BBA000171
$204,27 Unit Price incl. VAT
2
Cylinder head
AP3BBA000606
$127,12 Unit Price incl. VAT
3
Spark plug BPR7HS
AP2BEN000088
$8,10 Unit Price incl. VAT
4
Spark plug CPR8E
AP2BEN000276
Not Available
5
Flanged nut
AP3BDN000005
Not Available
6
Thermostat
AP2BAA000060
Not Available
6
Thermostat
AP2BAA000643
Not Available
7
screw
AP4ADN000014
$3,65 Unit Price incl. VAT
8
Screw w/ flange
AP3AUN000124
Not Available
9
Aluminium washer
AP4EEN000063
Not Available
10
Aluminium water outlet union
AP3LAA000110
Not Available
11
Thermistor
AP2BAA000067
Not Available
12
Thermistor
AP2BAA000164
Not Available
13
Thermostat gasket
AP5RLR000114
Not Available
14
O-ring
AP2EAN000312
Not Available
14
O-ring
AP2EAN000081
$3,65 Unit Price incl. VAT
15
Plastic water outlet union
AP3LAA000586
$5,38 Unit Price incl. VAT
16
Paper gasket
AP3EDN000281
$5,38 Unit Price incl. VAT
17
Self-tap screw 5,5x13
AP4APN000267
Not Available
18
T bush
AP3UAN000061
Not Available

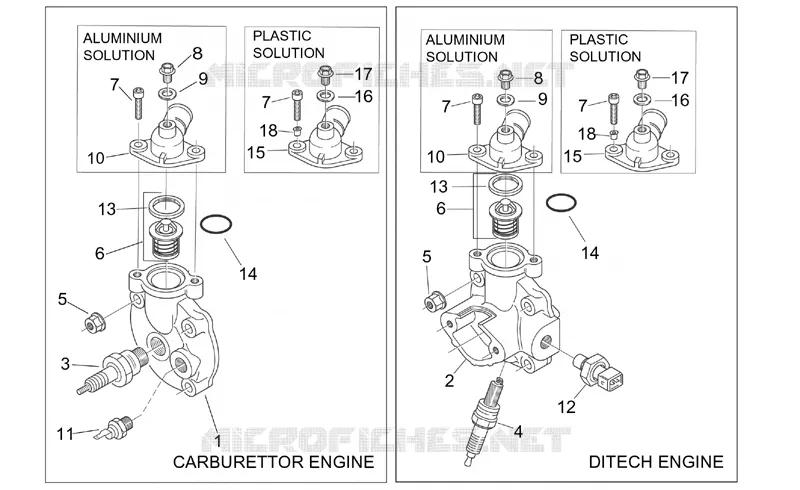

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
