Parts Catalog
Adler clutch
6
Parts Diagram
Parts Catalog
Engine (Ditech)
by
Handlebar - Buttons
Adler clutch
1
2
3
4
5
6
7
8
9
10
11
12
12
13
1
Speed variator w/ clutch
AP2MDA000428
Not Available
1
Speed variator w/ clutch
AP2MDA000425
Not Available
2
Guide roller for variator
AP5RMR000092
Not Available
3
Brake shoes return spring
AP5RMR000098
$5,38 Unit Price incl. VAT
3
Brake shoes return spring
AP5RMR000100
$10,00 Unit Price incl. VAT
4
Variator spring cup
AP5RMR000088
Not Available
5
O-ring
AP5RMR000097
Not Available
6
Sec. sheave spring
AP5RMR000087
$31,05 Unit Price incl. VAT
7
Centrifugal clutch assy
AP5RMR000086
Not Available
7
Centrifugal clutch assy
AP5RMR000099
$141,75 Unit Price incl. VAT
8
Flanged nut m10x1,5
AP4BDN000039
$3,65 Unit Price incl. VAT
9
Clutch housing, complete
AP2MDA000426
$152,01 Unit Price incl. VAT
10
Nut
AP5RMR000085
$6,60 Unit Price incl. VAT
11
Sec. fixed sheave, complete
AP5RMR000090
Not Available
12
Oil seal
AP5RMR000096
$19,68 Unit Price incl. VAT
13
Sec. sliding sheave, complete
AP5RMR000089
Not Available

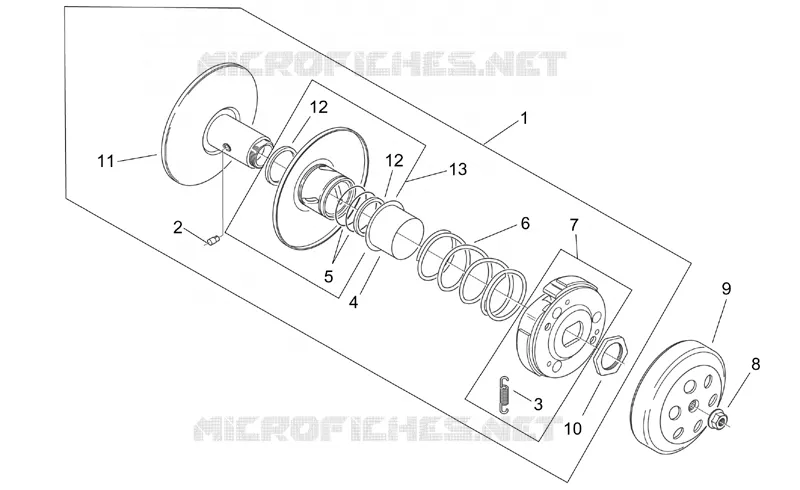

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
