1
Engine displacement
50
2
Model
SR
3
Year
2003
4
Trim
SR H2O (Ditech E2)
5
Parts Catalog

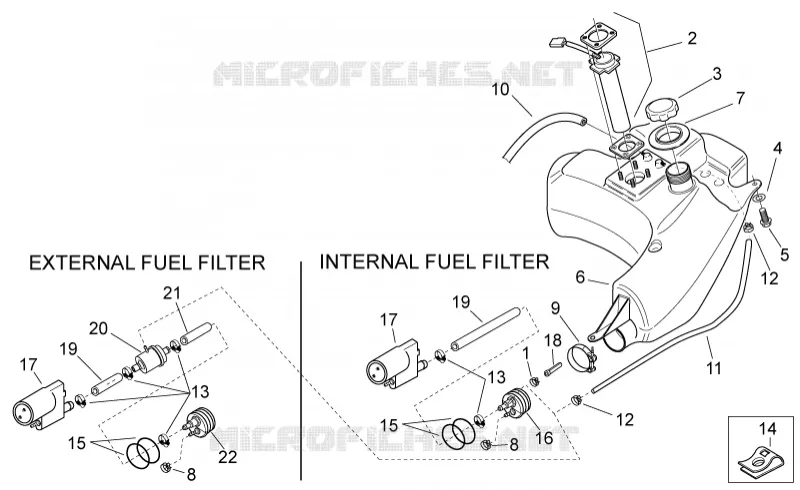

Fuel tank
6
Parts Diagram
Parts Catalog
by
Saddle - Handle
Fuel tank
1
2
3
4
5
6
7
8
8
9
10
11
12
12
13
13
14
15
15
16
17
17
18
19
19
20
21
22
1
White hose clip D17,5x8
AP8102349
$0,85 Unit Price incl. VAT
2
Fuel level sensor
AP8124814
$65,32 Unit Price incl. VAT
3
Fuel filler cap
AP8201757
$6,30 Unit Price incl. VAT
4
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
5
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
6
Fuel tank
AP8249300
$76,85 Unit Price incl. VAT
7
Filler cap rubber
AP8220472
Not Available
8
White hose clip d.13x6
AP8102764
$1,86 Unit Price incl. VAT
9
Flange closing
AP8258059
$8,16 Unit Price incl. VAT
10
Breather pipe 4x8
AP8220263
Not Available
11
Breather pipe
AP8220598
$5,38 Unit Price incl. VAT
12
Hose clip D8,5x5,5
AP8201225
$3,65 Unit Price incl. VAT
13
Hose clip
AP8102273
$3,78 Unit Price incl. VAT
14
Clip M6
AP8102376
Not Available
15
O-ring 37,69x3,53
AP8220596
$8,01 Unit Price incl. VAT
16
Fuel tank flange
AP8276065
Not Available
17
Fuel pump cpl.
AP8176137
Not Available
17
Fuel pump
854933
$425,51 Unit Price incl. VAT
18
Fuel filter kit
AP8202436
Not Available
19
Fuel pipe
AP8220597
Not Available
20
Fuel filter
AP8202402
$15,66 Unit Price incl. VAT
21
Fuel pipe
AP8220597
Not Available
22
Fuel tank flange
AP8276065
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
