1
Engine displacement
50
2
Model
SR
3
Year
2003
4
Trim
SR H2O (Ditech E2)
5
Parts Catalog
Rear body III
6

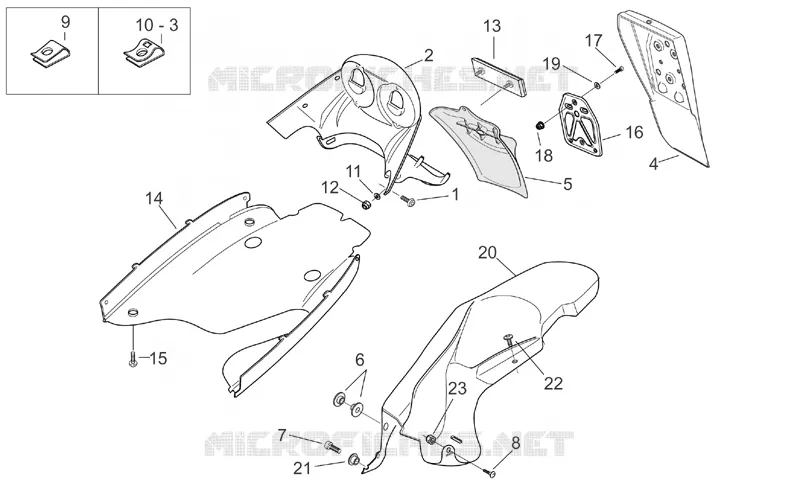

Parts Diagram
Parts Catalog
Rear body I
by
RH controls
Rear body III
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
2
Number plate holder, black
AP8226792
Not Available
2
Number plate holder, black
AP8226627
$30,28 Unit Price incl. VAT
3
Clip M6
AP8102376
Not Available
4
Rear splash guard, black
AP8226626
$4,54 Unit Price incl. VAT
5
Plate light support, black
AP8149303
$7,23 Unit Price incl. VAT
6
Mudguard bush
AP8221218
$3,65 Unit Price incl. VAT
7
Hex socket screw M6x30
AP8150220
$0,17 Unit Price incl. VAT
8
Screw w/ flange M6x35
AP8152282
$0,51 Unit Price incl. VAT
9
Screw clip D5,5*
AP8201763
$3,65 Unit Price incl. VAT
10
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
11
Washer 4,3X9X0,8
AP8150158
$3,65 Unit Price incl. VAT
12
Nut M4
AP8150204
$0,51 Unit Price incl. VAT
13
Rear reflector
AP8112916
$6,35 Unit Price incl. VAT
14
Fuel tank prot., met.black
AP8249762
Not Available
14
Gold fuel tank cover
AP8258790
Not Available
14
Grey fuel tank cover
AP8258562
$90,69 Unit Price incl. VAT
15
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
16
Number plate support
AP8249558
$5,38 Unit Price incl. VAT
17
Hex socket screw M4x10
AP8152043
$0,15 Unit Price incl. VAT
18
Nut M4
AP8150204
$0,51 Unit Price incl. VAT
19
Washer 4,3X9X0,8
AP8150158
$3,65 Unit Price incl. VAT
20
Rear mudguard
AP8226749
Not Available
21
T bush
AP8121811
$3,38 Unit Price incl. VAT
22
Screw w/ flange M5x12
AP8152302
Not Available
23
Low self-locking nut
AP8150430
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
