1
Engine displacement
50
2
Model
SR
3
Year
2004
4
Trim
SR H2O (Ditech E2)
5
Parts Catalog

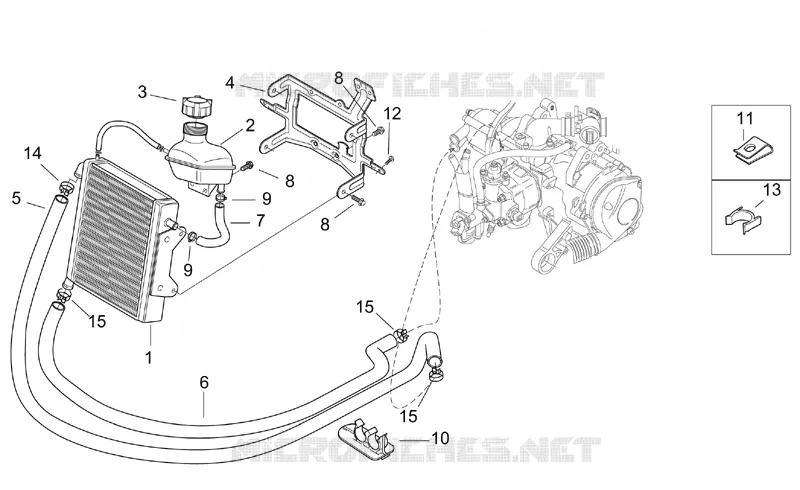

Cooling system
6
Parts Diagram
Parts Catalog
Front body II
by
Air compressor (Ditech)
Cooling system
1
2
3
4
5
6
7
8
8
8
9
9
10
11
12
13
14
15
15
15
1
Water cooler, black
AP8201695
Not Available
1
Water cooler, aluminium
AP8202212
Not Available
2
Expansion tank
AP8238750
$35,51 Unit Price incl. VAT
3
Rad cap no vent
AP8101912
$7,23 Unit Price incl. VAT
4
Water cooler support
AP8232941
$55,19 Unit Price incl. VAT
5
Water cooler-head tube
AP8220565
$22,29 Unit Price incl. VAT
6
Water cooler-pump tube
AP8220578
$19,68 Unit Price incl. VAT
7
Exp.tnk-rad. Hose
AP8220474
Not Available
8
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
9
White hose clip D.13,5x6
AP8102765
$3,59 Unit Price incl. VAT
10
Water tubes holder
AP8238769
Not Available
11
Clip M6
AP8102376
Not Available
12
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
13
Cable-guide D22
AP8201807
$5,38 Unit Price incl. VAT
14
Hose clamp D16-24x8*
AP8101573
$3,65 Unit Price incl. VAT
15
Hose clamp 17-25
AP8102732
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
