1
Engine displacement
50
2
Model
SR
3
Year
2004
4
Trim
SR H2O (Ditech E2)
5
Parts Catalog

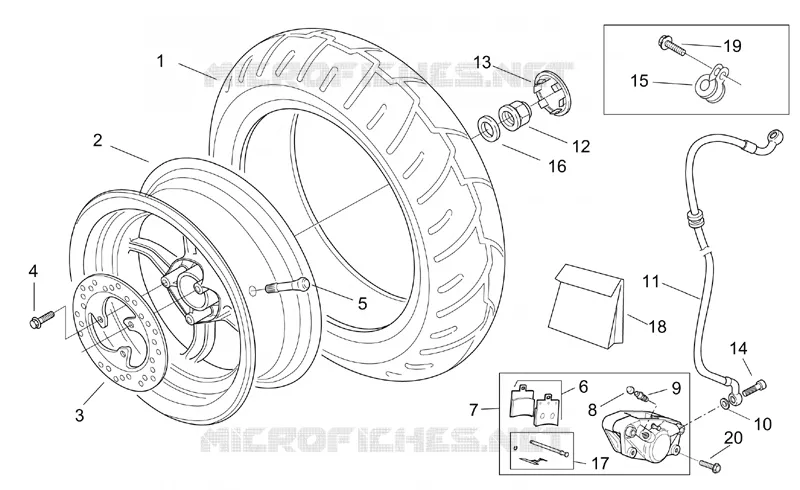

Rear wheel - disc brake
6
Parts Diagram
Parts Catalog
Cylinder with piston
by
Injection unit (Ditech)
Rear wheel - disc brake
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Tyre
0000000
Not Available
2
Rear wheel, black
AP8208785
Not Available
2
Rear wheel Grey/GoldSand
AP8208827
Not Available
2
Rear wheel, blue
AP8208709
Not Available
2
Rear wheel Gold
AP8208894
Not Available
2
Rear wheel Grey/GoldSand
AP8208897
Not Available
2
Rear wheel Gold
AP8208828
Not Available
2
Rear wheel, blue
AP8208909
Not Available
3
Brake disc D190
AP8213231
$20,52 Unit Price incl. VAT
4
Hex socket screw M8x25
AP8225358
Not Available
5
Tubeless tyre valve
AP8201546
$5,38 Unit Price incl. VAT
6
Pads pair
AP8113869
$43,88 Unit Price incl. VAT
7
Rear brake caliper, gold
AP8213488
Not Available
8
Bleed valve cap
AP8113005
$5,38 Unit Price incl. VAT
9
Air bleed valve
AP8113006
$24,59 Unit Price incl. VAT
10
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
11
Rear brake hose
AP8213474
Not Available
12
DAX flange nut M14x1,5
AP8152244
$4,36 Unit Price incl. VAT
13
Rear wheel plug
AP8220579
$5,38 Unit Price incl. VAT
13
Rear wheel plug
AP8208824
Not Available
13
Rear wheel plug
AP8258565
Not Available
13
Rear wheel plug
AP8208812
$5,38 Unit Price incl. VAT
14
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
15
Brake hose hanger
AP8134167
$1,49 Unit Price incl. VAT
16
Spring washer 14,5x24
AP8150471
$3,70 Unit Price incl. VAT
17
Pin+Brake spring
AP8113871
$11,77 Unit Price incl. VAT
18
Brake caliper rev. kit
AP8213457
Not Available
19
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
20
Screw w/ flange M8x30
AP8152288
$1,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
