1
Engine displacement
50
2
Model
SR
3
Year
2004
4
Trim
SR H2O (Ditech E2)
5
Parts Catalog
Reduction
6
Parts Diagram
Parts Catalog
Variator
by
Central body II

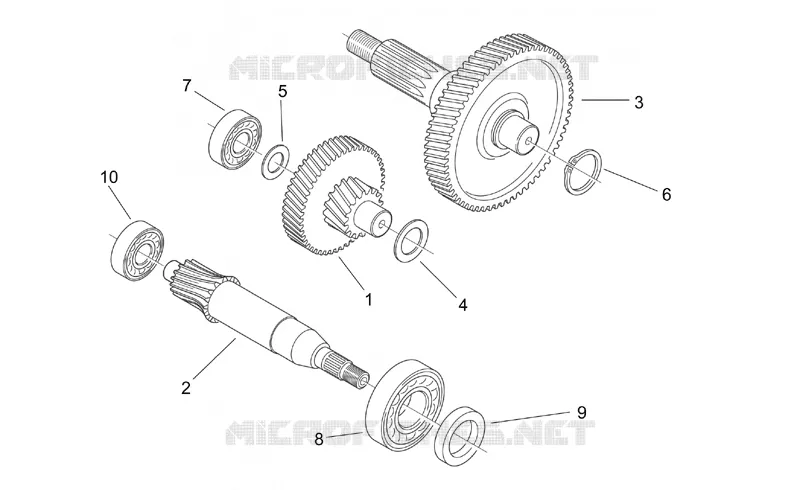

Reduction
1
2
3
4
5
6
7
8
9
10
1
Idle gear assy Z=17/51
AP1BOA000028
$246,07 Unit Price incl. VAT
2
Drive shaft
AP3NBA000027
$191,82 Unit Price incl. VAT
3
Drive shaft assy Z=64
AP1BOA000029
$89,76 Unit Price incl. VAT
4
LH Thrust washer
AP3NAN000059
$8,16 Unit Price incl. VAT
5
RH Thrust washer
AP3NAN000058
$8,16 Unit Price incl. VAT
6
Circlip
AP3FBN000049
Not Available
7
Bearing d12x32x10
AP4GAN000025
$6,35 Unit Price incl. VAT
8
Bearing d22x50x14
AP3GAN000051
$29,70 Unit Price incl. VAT
9
Oil seal 22x32x5
AP3EBN000046
Not Available
10
Bearing d12X32X10
AP2GAN000113
$17,01 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
