1
Engine displacement
50
2
Model
SR
3
Year
2003
4
Trim
SR H2O (IE+Carb.)
5
Parts Catalog

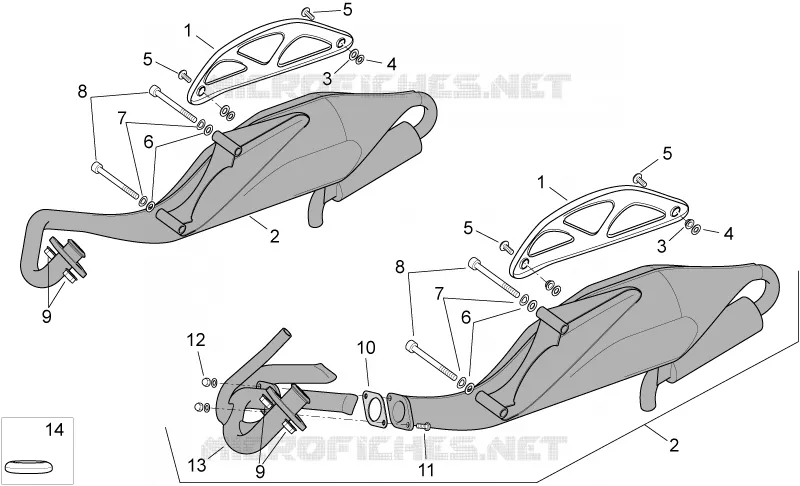

Exhaust pipe
6
Parts Diagram
Parts Catalog
Frame
by
Front body I
Exhaust pipe
1
1
2
2
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
10
11
12
13
14
1
Steel exhaust pipe prot.
AP8219452
$55,19 Unit Price incl. VAT
1
Exhaust pipe prot., black
AP8219389
$8,16 Unit Price incl. VAT
2
Silencer
AP8219580
Not Available
2
Silencer
AP8219589
Not Available
3
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
4
Insulating washer
AP8221297
$3,65 Unit Price incl. VAT
5
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
6
Washer 8,4x16x1,6
AP8150017
$3,65 Unit Price incl. VAT
7
Washer 8,5x15x0,8
AP8150376
$0,08 Unit Price incl. VAT
8
Hex socket screw M8x85*
AP8150354
$3,65 Unit Price incl. VAT
9
Flanged nut
AP8150506
$3,65 Unit Price incl. VAT
10
Exhaust pipe flange gasket
AP8219530
Not Available
11
screw
AP8219531
$3,65 Unit Price incl. VAT
12
Nut
AP8219532
Not Available
13
Manifold
AP8219605
Not Available
14
Exhaust pipe gasket
AP8219612
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
