1
Engine displacement
50
2
Model
SR
3
Year
2003
4
Trim
SR H2O (IE+Carb.)
5
Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Oil pump
by
Acc. - Various

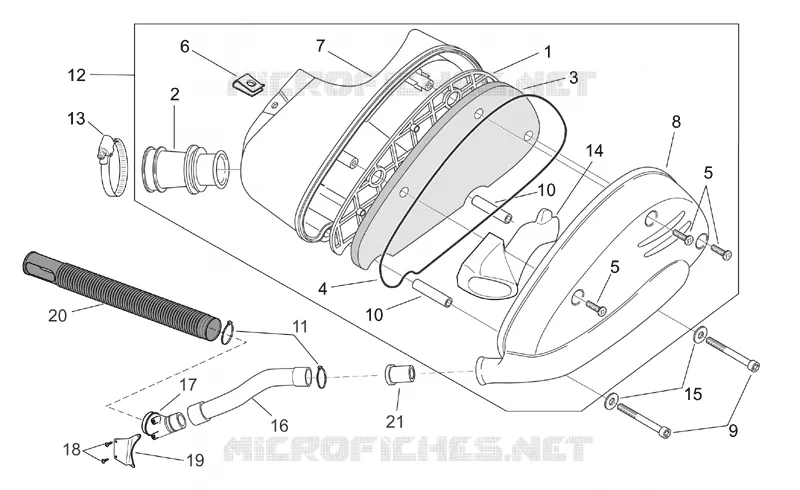

Air box
1
2
3
4
5
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
1
Filter support guard
AP8249582
Not Available
2
Carburettor flange
AP8220587
$5,38 Unit Price incl. VAT
3
Air filter
AP8202302
Not Available
4
Gasket D4
AP8120593
Not Available
5
Phillips screw, SWP M5x20
AP8152329
$0,69 Unit Price incl. VAT
6
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
7
Filter housing body
AP8249298
$8,91 Unit Price incl. VAT
8
Filter housing cover
AP8249299
$7,23 Unit Price incl. VAT
9
Hex socket screw M6x60
AP8150157
$3,65 Unit Price incl. VAT
10
Spacer
AP8121984
$3,65 Unit Price incl. VAT
11
Black hose 178x4
AP8120416
$5,38 Unit Price incl. VAT
12
Air box cpl.
AP8258241
$144,48 Unit Price incl. VAT
13
Hose collar
AP8201799
$3,65 Unit Price incl. VAT
14
Volume air box hose
AP8220608
$7,23 Unit Price incl. VAT
15
Washer 6,4x15x1
AP8152181
$0,07 Unit Price incl. VAT
16
Intake hose
AP8220603
Not Available
17
Joint
AP8220604
$5,38 Unit Price incl. VAT
18
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
19
Pipe support
AP8234214
$2,13 Unit Price incl. VAT
20
Pipe
AP8220605
$8,91 Unit Price incl. VAT
21
Orifice
AP8220647
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
