1
Engine displacement
50
2
Model
SR
3
Year
2003
4
Trim
SR H2O (IE+Carb.)
5
Parts Catalog
Engine II
6

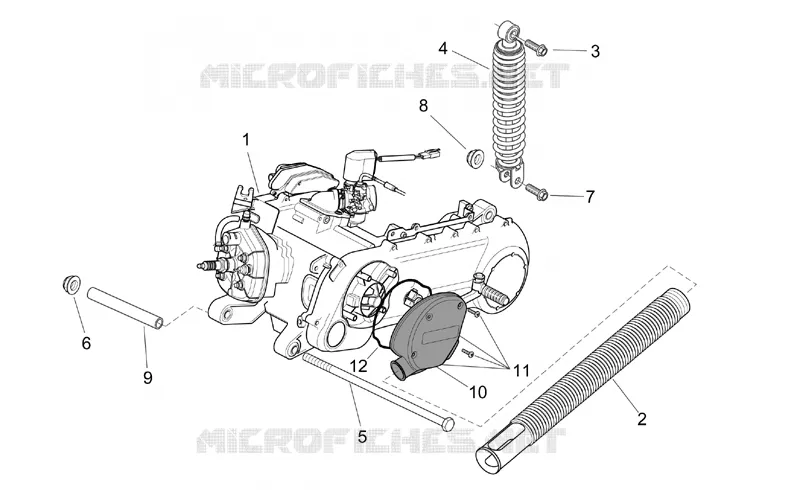

Parts Diagram
Parts Catalog
Rear body II
by
Starter motor
Engine II
1
2
3
4
5
6
7
8
9
10
11
12
1
Carb. Engine
AP8222791
Not Available
2
Variator air intake
AP8220646
Not Available
3
Screw w/ flange M10x35
AP8152318
$4,36 Unit Price incl. VAT
4
Yellow spring absorber
AP8223036
Not Available
4
Grey spring absorber
AP8223059
Not Available
5
Screw
AP8150412
$3,70 Unit Price incl. VAT
6
Self-locking nut
AP8152301
$0,59 Unit Price incl. VAT
7
Screw w/ flange M10x55
AP8152410
$3,65 Unit Price incl. VAT
8
Self-locking nut
AP8152301
$0,59 Unit Price incl. VAT
9
Engine pivot pin bush
AP8221347
$8,91 Unit Price incl. VAT
10
Variator cover
AP8276020
Not Available
11
Light adjustment self-threading screw
AP8150515
$3,65 Unit Price incl. VAT
12
Antidust gasket
AP8220655
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
