Engine displacement
50
2
Model
SR
3
Year
2003
4
Trim
SR H2O (IE+Carb.)
5
Parts Catalog
Electrical system II
6

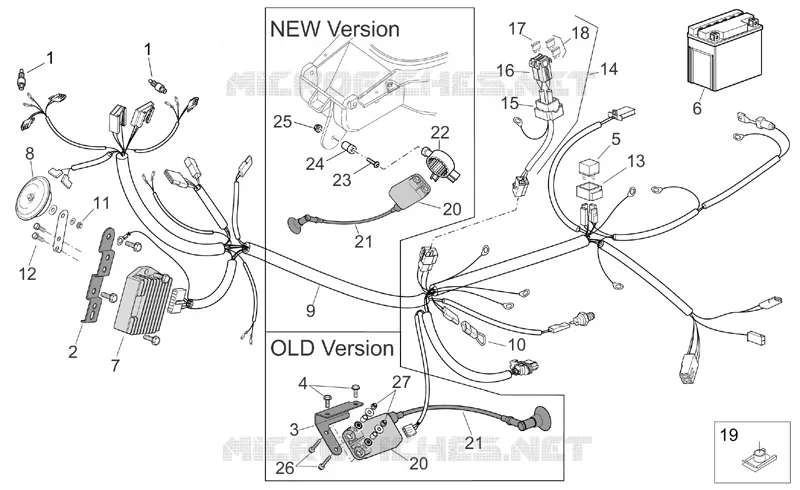

Parts Diagram
Parts Catalog
Cooling system
by
Oil tank
Electrical system II
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
23
24
25
26
27
1
stop Button
AP8127305
Not Available
2
Voltage regulator support
AP8234223
Not Available
3
Control unit fixing plate
AP8234224
Not Available
4
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
5
Starter relay
AP8224026
Not Available
6
Battery 12V-4Ah
AP8212110
Not Available
7
Voltage regulator
AP8124648
Not Available
8
Horn
AP8212611
$9,50 Unit Price incl. VAT
9
Main wiring harness
AP8224632
Not Available
9
Main wiring harness
AP8224506
Not Available
10
Diode
AP8212382
$5,38 Unit Price incl. VAT
11
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
12
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
13
Relay rubber
AP8220546
$4,62 Unit Price incl. VAT
14
Fuse cable
AP8224284
Not Available
15
Rubber fuse box
AP8112811
$6,40 Unit Price incl. VAT
16
Rubber fuse box
AP8120754
$6,30 Unit Price incl. VAT
17
Tyre
0000000
Not Available
18
Tyre
0000000
Not Available
19
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
20
Transducer
AP8224508
Not Available
21
HT wire
AP8224578
$25,82 Unit Price incl. VAT
22
Fuel pump support
AP8220592
$5,38 Unit Price incl. VAT
23
Hex socket screw
AP8225369
$3,65 Unit Price incl. VAT
24
Pin
AP8234195
$5,38 Unit Price incl. VAT
25
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
26
Screw w/ flange M5x25
AP8152275
Not Available
27
Low self-locking nut
AP8150451
$0,17 Unit Price incl. VAT
