1
Engine displacement
50
2
Model
SR
3
Year
2005
4
Trim
SR H2O (IE+Carb.)
5
Parts Catalog

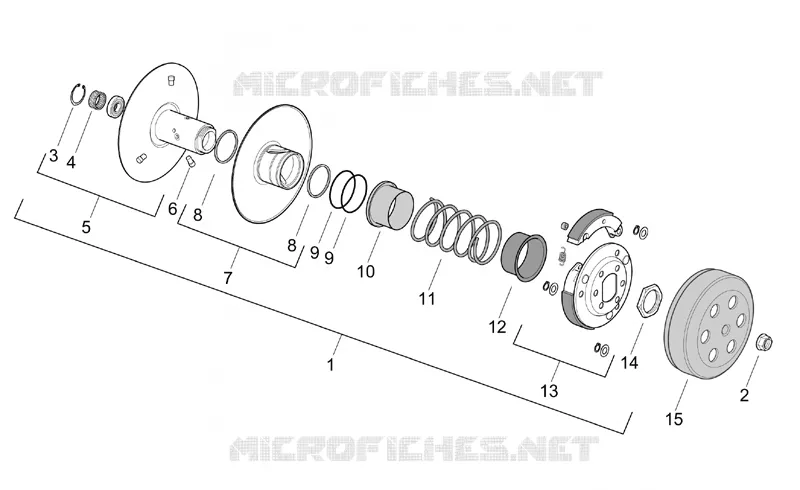

Clutch
6
Parts Diagram
Parts Catalog
Variator
by
Handlebar - Dashboard
Clutch
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
1
Secondary pulley
AP8515057
Not Available
2
Flanged nut
AP8550390
Not Available
3
Circlip
AP8551005
Not Available
4
Roller cage
AP8551023
Not Available
5
Sec. fixed sheave, complete
AP8515059
Not Available
6
Guide pin
AP8551041
Not Available
7
Sec. sliding sheave, complete
AP8551055
Not Available
8
Oil seal
AP8551022
Not Available
9
O-ring
AP8551019
Not Available
10
Spring seat
AP8551042
Not Available
11
Spring
AP8551030
Not Available
12
Spring seat
AP8551049
Not Available
13
Centrifugal clutch assy
AP8515058
Not Available
14
Nut
AP8551025
Not Available
15
Clutch drum
AP8551021
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
