Parts Catalog
Transmission final drive
6

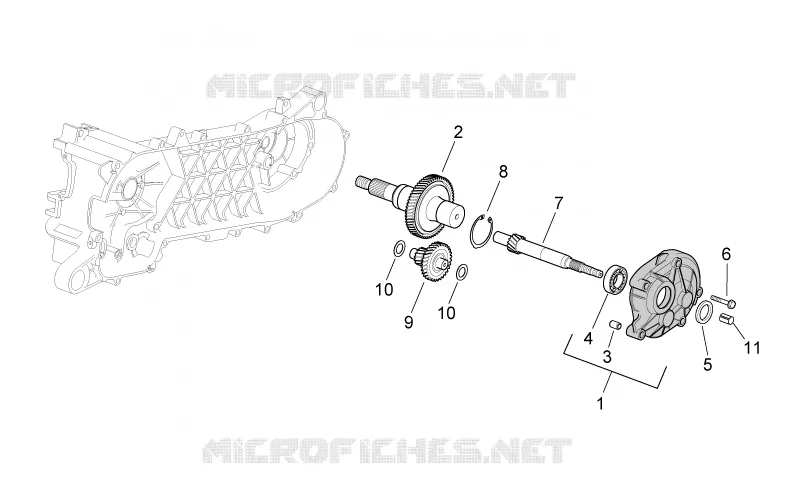

Parts Diagram
Parts Catalog
Front body I
by
Water pump
Transmission final drive
1
2
3
4
5
6
7
8
9
10
10
11
1
Transmission cover cpl.
AP8515064
Not Available
2
Drive shaft assy
AP8515067
Not Available
2
Drive shaft assy
AP8515115
Not Available
3
Pin d.9,5 h=15
AP8550107
Not Available
4
Ball bearing 40x17x12
AP8223019
Not Available
5
Oil seal
AP8551035
Not Available
6
screw M6x40
AP8515066
Not Available
7
Drive shaft Z=13
AP8515069
Not Available
8
Circlip
AP8551039
Not Available
9
Idle gear assy
AP8515065
Not Available
9
Idle gear assy
AP8515114
Not Available
10
Thrust washer
AP8550470
Not Available
11
Compensator ring
AP8551031
Not Available
