Engine displacement
50
2
Model
SR
3
Year
1999
4
Trim
SR H2O
5
Parts Catalog
Front body III
6
Parts Diagram
Parts Catalog
Front body II
by
Front body IV
Front body III
1
2
3
4
5
6
7
7
8
9
10
11
12
1
Front shield, brio yell.+decal
AP8239948
Not Available
1
Front shield, black+decal
AP8239714
Not Available
1
Front shield, black+decal
AP8239898
Not Available
1
Front shield, r.blue+decal
AP8239081
Not Available
1
Front shield, grey+decal
AP8239721
Not Available
1
Front shield, sh.black + dec
AP8248742
Not Available
1
Front shield, black+decal
AP8239742
Not Available
1
Front shield, Ap.black+dec
AP8248669
Not Available
1
Front shield, nik grey
AP8258038
Not Available
1
Front shield, black+decal
AP8239071
Not Available
1
Front shield, red+decal
AP8239402
Not Available
1
Front shield, fumè blue + dec
AP8248829
Not Available
1
Front shield, grey+decal
AP8239391
Not Available
1
Front shield, cy.yell.+decal
AP8248839
Not Available
1
Front shield, Ap.black+dec
AP8249309
Not Available
2
Tab.int.noir mét.;
AP8248656
$31,97 Unit Price incl. VAT
2
Internal shield, grey
AP8238362
Not Available
3
Clip pour vis taraud
AP8201763
$3,65 Unit Price incl. VAT
4
Screw clip D4,2
AP8102782
Not Available
5
Undersaddle hook cpl.
AP8258034
$6,30 Unit Price incl. VAT
6
Type appr.data cover, black
AP8248657
Not Available
6
Couv. données hom., gris;
AP8238675
$5,38 Unit Price incl. VAT
7
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT
8
Caoutchouc avec insert
AP8120531
$6,30 Unit Price incl. VAT
9
Clip
AP8102375
$0,69 Unit Price incl. VAT
10
Clip M6
AP8102376
Not Available
11
RH dir.light place cover
AP8249281
Not Available
12
LH dir.light place cover
AP8249282
Not Available

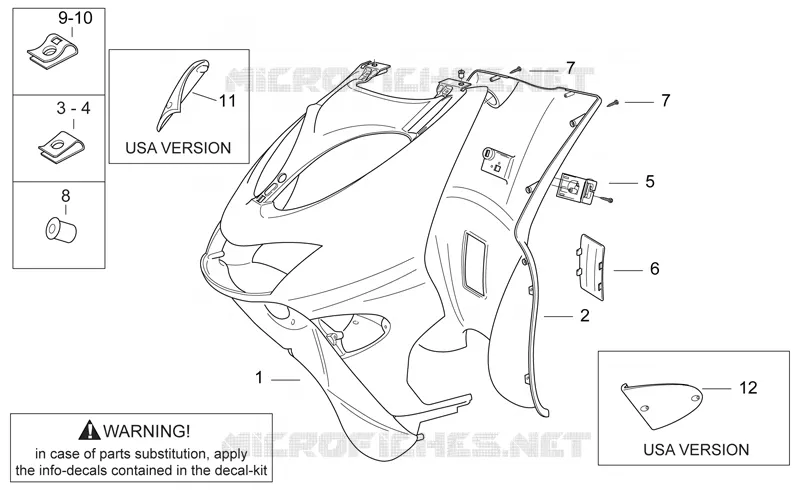

Find the detailed Front body III APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
