Engine displacement
50
2
Model
SR
3
Year
1999
4
Trim
SR H2O
5
Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
by
Central stand - Connecting rod
Frame
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Frame with electro-coating
AP8232944
Not Available
2
Ball ring set, complete
AP8203666
Not Available
3
Underpanel support
AP8232946
Not Available
4
Lock kit
AP8201845
Not Available
5
Ecrou autobloqu.
AP8152300
$0,34 Unit Price incl. VAT
6
Main switch - steering lock
AP8201600
Not Available
7
Aprilia milled key
AP8102880
Not Available
8
Vis à arrachement
AP8152140
$3,65 Unit Price incl. VAT
9
Saddle lock
AP8202362
$52,57 Unit Price incl. VAT
10
Support tablier avant;
AP8234130
$6,30 Unit Price incl. VAT
11
Ecrou en cage
AP8221213
$3,65 Unit Price incl. VAT
12
Clip M6
AP8102376
Not Available
13
Clip
AP8102375
$0,69 Unit Price incl. VAT
14
Clip pour vis taraud
AP8201763
$3,65 Unit Price incl. VAT
15
Vis bride
AP8152285
$0,51 Unit Price incl. VAT
16
Sparkplug cable guide
AP8221248
Not Available
17
Ressort connecteurs;
AP8121309
$5,38 Unit Price incl. VAT
18
Lock
AP8201747
Not Available

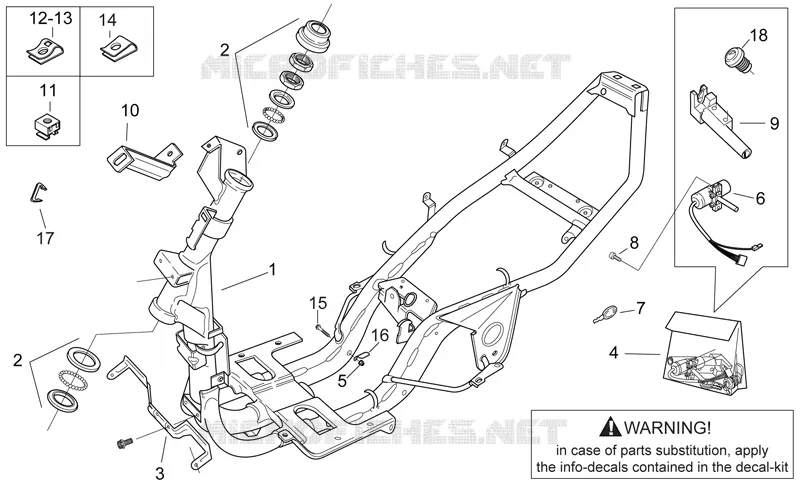

Find the detailed Frame APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
