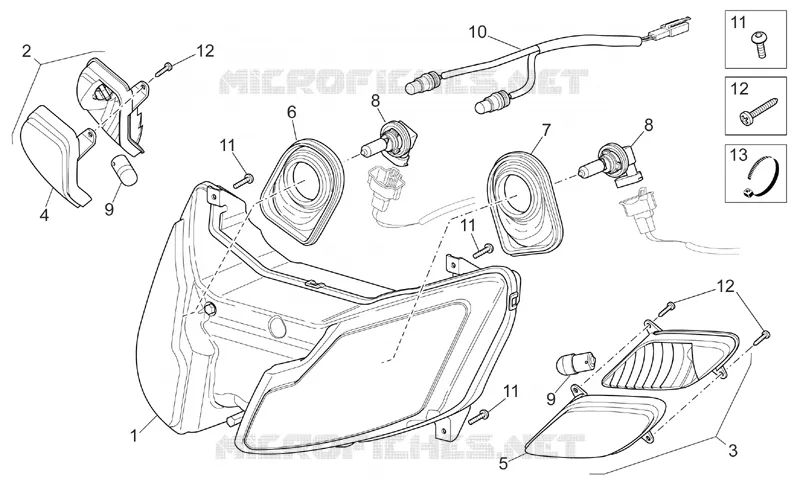

Front lights
1
2
3
4
5
6
7
8
8
9
9
10
11
11
11
11
12
12
12
13
1
Headlight
AP8224646
Not Available
1
Headlight
AP8224586
Not Available
2
RH front turn indicator
AP8224589
$43,20 Unit Price incl. VAT
3
LH front turn indicator
AP8224590
Not Available
4
RH Turn indicator f.lens
AP8224659
Not Available
5
LH front turn indicator lens
AP8224660
$30,28 Unit Price incl. VAT
6
RH Front headlight guard
AP8224656
$8,16 Unit Price incl. VAT
7
LH Front headlight guard
AP8224657
$8,16 Unit Price incl. VAT
8
Tyre
0000000
Not Available
9
Tyre
0000000
Not Available
10
Headlight wiring w/harness
AP8224666
$64,55 Unit Price incl. VAT
11
Hex socket screw M4x16
AP8150493
$3,65 Unit Price incl. VAT
12
Self-tap screw 3,9x14
AP8150413
$0,08 Unit Price incl. VAT
13
Black hose 178x4
AP8120416
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
