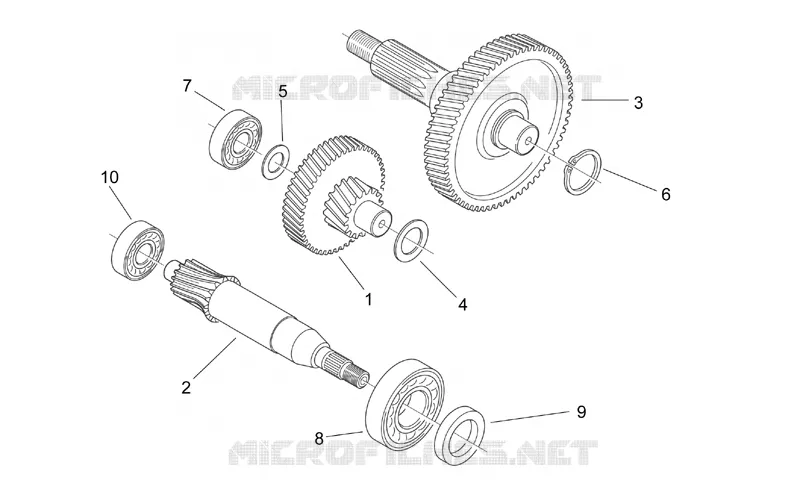

Transmission final drive
1
2
3
4
5
6
7
8
9
10
1
Idle gear assy Z=17/51
AP1BOA000028
$246,07 Unit Price incl. VAT
2
Drive shaft
AP3NBA000027
$191,82 Unit Price incl. VAT
3
Drive shaft assy Z=64
AP1BOA000029
$89,76 Unit Price incl. VAT
4
LH Thrust washer
AP3NAN000059
$8,16 Unit Price incl. VAT
5
RH Thrust washer
AP3NAN000058
$8,16 Unit Price incl. VAT
6
Circlip
AP3FBN000049
Not Available
7
Bearing d12x32x10
AP4GAN000025
$6,35 Unit Price incl. VAT
8
Bearing d22x50x14
AP3GAN000051
$29,70 Unit Price incl. VAT
9
Oil seal 22x32x5
AP3EBN000046
Not Available
10
Bearing d12X32X10
AP2GAN000113
$17,01 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
