1
Engine displacement
750
2
Model
DORSODURO
3
Year
2011
4
Trim
Dorsoduro ABS
5
Parts Catalog

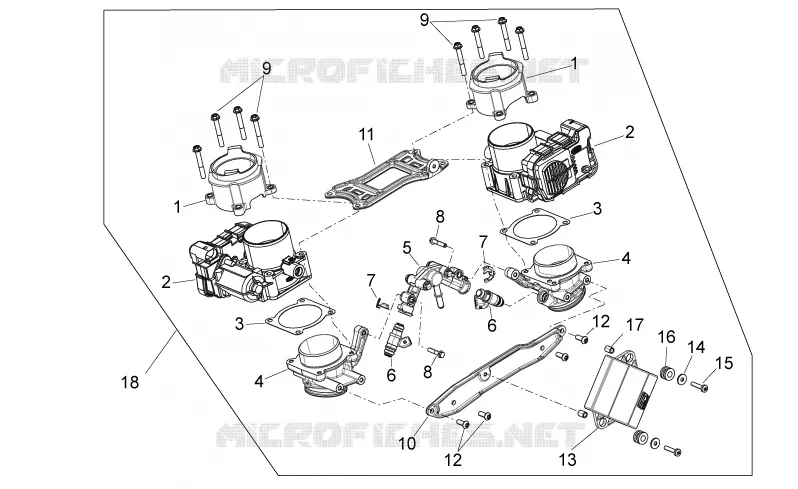

Throttle body
6
Parts Diagram
Parts Catalog
Drive shaft
by
Central body
Throttle body
18
17
16
15
14
13
12
12
11
10
9
9
8
8
7
7
6
6
5
4
4
3
3
2
2
1
1
1
Air filter support
872174
$5,44 Unit Price incl. VAT
2
Throttle body
872230
Not Available
3
Gasket
872264
$1,85 Unit Price incl. VAT
4
Union
872173
$19,94 Unit Price incl. VAT
5
Fuel rail cpl
873218
$19,58 Unit Price incl. VAT
6
Injector
584815
Not Available
7
Spring
849898
$0,34 Unit Price incl. VAT
8
Screw w/ flange M6x30
289731
Not Available
9
screw M6x60
432142
$0,19 Unit Price incl. VAT
10
plate
872176
$6,88 Unit Price incl. VAT
11
Upper plate
872177
$7,69 Unit Price incl. VAT
12
Hex socket screw
873433
$0,17 Unit Price incl. VAT
13
ECU
640268
Not Available
14
Washer 5,2X15X1,5
224664
$1,26 Unit Price incl. VAT
15
TBIC screw
015597
$0,08 Unit Price incl. VAT
16
Pad
217163
$0,54 Unit Price incl. VAT
17
Spacer
217164
$0,62 Unit Price incl. VAT
18
Throttle body cpl.
875775
$866,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
