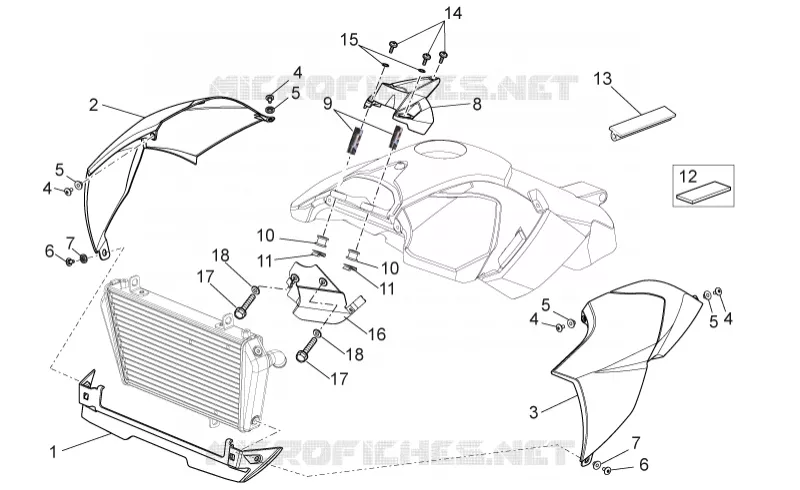

Central body FOR Dorsoduro ABS FROM 2011

Central body

1

Air deflector

856860

$9,84 Unit Price incl. VAT

2

RH air duct, black

85682500Z5

$512,28 Unit Price incl. VAT

2

RH air duct,silver

85682500XE4

$512,28 Unit Price incl. VAT

2

RH air duct, black

85682500XN6

Not Available

2

RH side panel, white

85682500XB3

Not Available

2

RH air duct, black

85682500XN5

$512,28 Unit Price incl. VAT

2

RH air duct, green

85682500XV5

$512,28 Unit Price incl. VAT

2

RH air duct, green

85682500Z2

$512,28 Unit Price incl. VAT

2

Painted white/black right duct

85682500Z1

$512,28 Unit Price incl. VAT

2

RH side panel

85682500XD6

$512,28 Unit Price incl. VAT

2

RH air duct, red

85682500XR4

$512,28 Unit Price incl. VAT

2

RH air duct,white

85682500BM

Not Available

2

RH air duct, white

85682500XB9

$512,28 Unit Price incl. VAT

2

RH air duct, red

85682500R7

Not Available

3

LH side panel, white

85682400XB3

$512,28 Unit Price incl. VAT

3

LH air duct, red

85682400R7

$512,28 Unit Price incl. VAT

3

LH side panel, green

85682400Z2

$512,28 Unit Price incl. VAT

3

LH air duct, red

85682400XR4

$512,28 Unit Price incl. VAT

3

LH air duct, black

85682400Z5

$512,28 Unit Price incl. VAT

3

LH air duct, black

85682400XN5

$512,28 Unit Price incl. VAT

3

LH air duct,white

85682400BM

$512,28 Unit Price incl. VAT

3

Painted white/black left duct

85682400Z1

$512,28 Unit Price incl. VAT

3

LH air duct, white

85682400XB9

$512,28 Unit Price incl. VAT

3

LH air duct, black

85682400XN6

$512,28 Unit Price incl. VAT

3

LH side panel

85682400XD6

$512,28 Unit Price incl. VAT

3

LH air duct,silver

85682400XE4

Not Available

3

LH air duct, green

85682400XV5

$512,28 Unit Price incl. VAT

4

Screw w/ flange M5x9

AP8152339

$3,65 Unit Price incl. VAT

5

T bush *

AP8121725

$3,65 Unit Price incl. VAT

6

Screw w/ flange M6x16

AP8152246

$0,27 Unit Price incl. VAT

7

Spacer

AP8120253

$3,65 Unit Price incl. VAT

8

Covers

856823

$17,77 Unit Price incl. VAT

9

Spacer

860137

$5,80 Unit Price incl. VAT

10

Rubber spacer

AP8144328

$1,77 Unit Price incl. VAT

11

Spring plate M6

254485

$0,34 Unit Price incl. VAT

12

Adhesive sponge

AP8117033

$5,38 Unit Price incl. VAT

13

Heat protection gasket

AP8117275

$10,00 Unit Price incl. VAT

14

Hex socket screw M5x9

AP8150500

$1,53 Unit Price incl. VAT

15

Washer

AP8152037

$3,65 Unit Price incl. VAT

16

Guard

890421

$7,50 Unit Price incl. VAT

17

Screw w/ flange M6x20

AP8152279

$0,51 Unit Price incl. VAT

18

Bush

AP8121991

$5,20 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
