Parts Catalog
Rear wheel
6

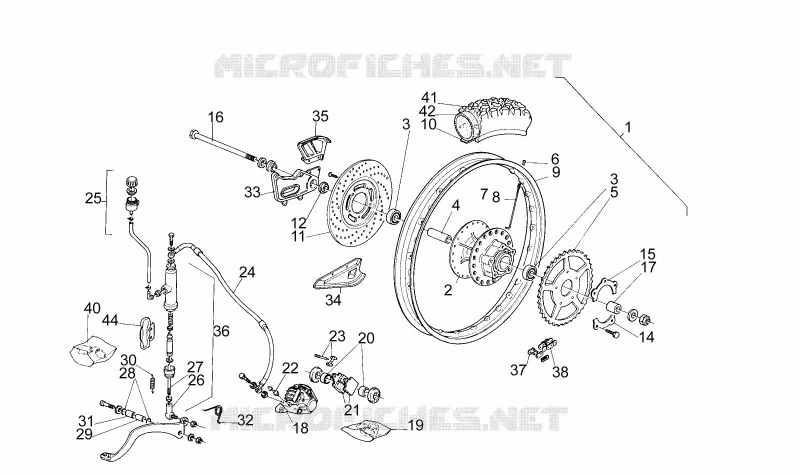

Parts Diagram
Parts Catalog
Front wheel
by
Frame
Rear wheel
1
2
3
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
40
41
42
44
1
Rear wheel
AP8208165
Not Available
2
Rear hub, red
AP8225224
Not Available
3
Bearing
AP8225123
$21,37 Unit Price incl. VAT
4
Spacer
AP8225142
Not Available
5
Chain ring Z=44 1/2"X3/16"
AP8207022
Not Available
6
Nipples D3
AP8208410
$5,38 Unit Price incl. VAT
7
Spoke 3x196 80°
AP8208125
Not Available
8
Spoke 3x196 92°
AP8208127
Not Available
9
Rear wheel, stain.
AP8208352
Not Available
10
Wheel flap 18"
AP8209032
Not Available
11
Rear brake disc d.220
AP8213031
Not Available
12
Spacer
AP8121088
Not Available
14
Plate 2 holes
AP8225144
Not Available
15
Plate 3 holes
AP8225145
Not Available
16
Rear wheel spindle
AP8225163
Not Available
17
Bush
AP8225138
Not Available
18
Rear brake caliper
AP8213081
Not Available
19
Brake caliper rev. kit
AP8213102
Not Available
20
Piston
AP8213103
Not Available
21
Pads pair
AP8213104
$73,58 Unit Price incl. VAT
22
Air bleed valve
AP8213108
$9,22 Unit Price incl. VAT
23
Rear pads pin
AP8213109
Not Available
24
Rear brake hose
AP8213140
Not Available
25
Oil tank
AP8213086
Not Available
26
RH ball joint M6
AP8210007
$5,13 Unit Price incl. VAT
27
Rear master cyl.rod
AP8221074
$6,15 Unit Price incl. VAT
28
O-ring 119
AP8220149
$3,65 Unit Price incl. VAT
29
Bush
AP8221010
Not Available
30
Spring
AP8221013
Not Available
31
Bushing
AP8221014
Not Available
32
Spring
AP8221022
Not Available
33
Brake hanger plate
AP8234064
Not Available
34
Bottom disk cover, white
AP8130267
Not Available
35
Top disk cover, white
AP8130590
Not Available
36
Rear master cylinder
AP8213117
Not Available
37
Connecting link
AP8207019
Not Available
38
Chain cpl conn.link
AP8207017
Not Available
40
Rear pump rev. kit
AP8113366
Not Available
41
Missing description
AP
Not Available
42
Missing description
AP
Not Available
44
Brake master cyl.protection
AP8230575
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
