1
Engine displacement
50
2
Model
TUAREG
3
Year
1990
4
Trim
TUAREG RALLY
5
Parts Catalog

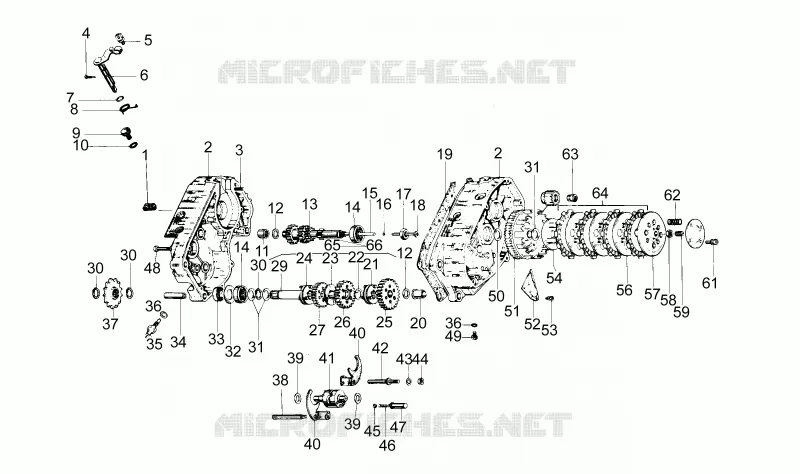

Crank-case
6
Parts Diagram
Parts Catalog
Drive shaft - Cylinder
by
Mix oil
Crank-case
1
2
2
3
4
5
6
7
8
9
10
11
12
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
29
30
30
30
31
31
32
33
34
35
36
36
37
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
56
57
58
59
61
62
63
64
65
66
1
Rubber spacer
AP8501853
Not Available
2
Crankcase assy
AP8509927
Not Available
3
Screw M6x30
AP8502566
$3,65 Unit Price incl. VAT
4
Special cap screw M4
AP8502537
Not Available
5
Gear cpl.
AP8502999
Not Available
6
Clutch lever
AP8509194
Not Available
7
O-ring D7,65x1,78
AP8502655
Not Available
8
Spring
AP8502358
Not Available
9
Oil filler plug
AP8501876
Not Available
10
Plug gasket
AP8502713
Not Available
11
Roller cage
AP8502608
Not Available
12
Blue steel washer D13,2x20
AP8222337
$5,20 Unit Price incl. VAT
13
Primary gear shaft
AP8509900
Not Available
14
Bearing D15x35x11
AP8502624
Not Available
15
Push rod d.5x79
AP8502794
Not Available
16
Ball 3/16"
AP8502652
Not Available
17
Nut M11X1 (H=7,5)
AP8502435
Not Available
18
Clutch push rod D13
AP8502836
Not Available
19
Gasket
AP8502687
Not Available
20
Bush
AP8502613
Not Available
21
Sliding coupling 1-2 spd.
AP8502253
Not Available
22
Outside circlip D18
AP8501471
Not Available
23
Blue steel washer D18x30
AP8502500
Not Available
24
Sliding coupling 3-4 spd.
AP8502257
Not Available
25
1st wheel gear
AP8502161
Not Available
26
2nd wheel gear
AP8509880
Not Available
27
3rd wheel gear
AP8509881
Not Available
29
Driven shaft
AP8509879
Not Available
30
Outside circlip D15
AP8501469
$3,65 Unit Price incl. VAT
31
Washer d.15
AP8502494
Not Available
32
Washer d.22
AP8502522
Not Available
33
Oil seal D12x22x7
AP8509180
Not Available
34
Locating dowel
AP8502810
Not Available
35
Neutral indicator switch
AP8507439
Not Available
36
Oil plug seal D8x14
AP8502759
Not Available
37
Pinion Z=14
AP8207034
Not Available
37
Pinion Z=10
AP8207030
Not Available
37
Pinion Z=12
AP8207032
Not Available
37
Pinion Z=11
AP8207031
Not Available
37
Pinion Z=13
AP8207033
Not Available
37
Pinion
AP8207035
Not Available
38
Pin
AP8502823
Not Available
39
Washer d.10
AP8502486
Not Available
40
Fork
AP8501969
Not Available
41
Shift cam
AP8509883
Not Available
42
Pin
AP8502819
Not Available
43
Int. notched washer D7
AP8502473
$3,65 Unit Price incl. VAT
44
Nut M7x5,5
AP8502414
Not Available
45
Ball
AP8502653
Not Available
46
Spring
AP8502343
Not Available
47
Pin retainer
AP8502806
Not Available
48
Screw M6x50
AP8502570
Not Available
49
Oil drain hex screw M8x10
AP8502586
$3,65 Unit Price incl. VAT
50
Copper washer
AP8508556
Not Available
51
Clutch housing, complete Z=16/61
AP8508572
Not Available
52
Plate
AP8501923
Not Available
53
Screw with washer M4x10
AP8502559
Not Available
54
Springholder plate
AP8508543
Not Available
56
Metallic clutch disc
AP8508544
Not Available
57
Springholder plate
AP8508545
Not Available
58
Nut M14x1,25x6
AP8502432
Not Available
59
Adjuster screw M14x1,25
AP8502533
$5,90 Unit Price incl. VAT
61
Screw
AP8508554
Not Available
62
Clutch spring 4 disk
AP8502328
Not Available
63
Nut M9x1
AP8502419
Not Available
64
Clutch disks
AP8222187
Not Available
65
Secondary shaft cpl.
AP8509901
Not Available
66
Gear box assy 3 speeds
AP8509882
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
