1
Engine displacement
1000
2
Model
TUONO
3
Year
2002
4
Trim
RSV 1000 Tuono
5
Parts Catalog
Cylinder head and valves
6
Parts Diagram
Parts Catalog
Rear electrical system
by
Acc. - Performance parts II

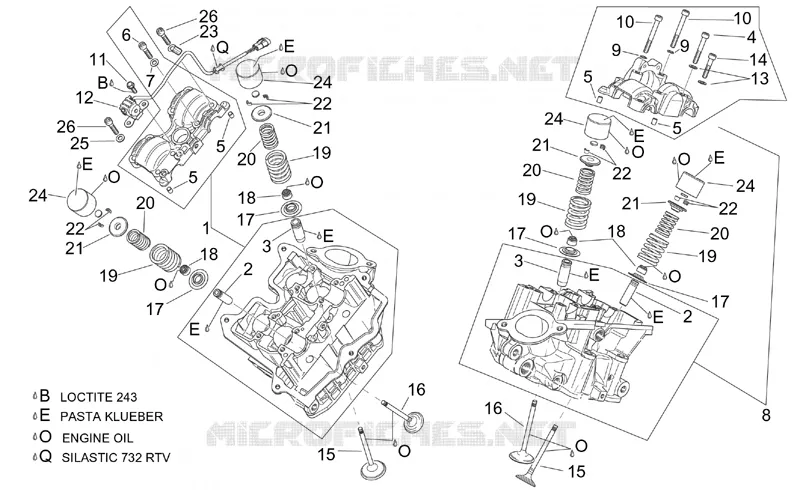

Cylinder head and valves
1
2
2
3
3
4
5
5
5
5
6
7
8
9
9
10
10
11
12
13
14
15
15
16
16
17
17
17
17
18
18
18
19
19
19
19
20
20
20
20
21
21
21
21
22
22
22
22
23
24
24
24
24
25
26
26
1
Front cylinder head cpl.
AP0613491
Not Available
2
Exhaust valve guide
AP0253926
Not Available
3
Intake valve guide
AP0253921
Not Available
4
Hex socket screw M6x45
AP0241821
Not Available
5
Pin 6x8
AP0232210
Not Available
6
Hex socket screw M6x30
AP0840880
$3,65 Unit Price incl. VAT
7
Washer 6,2x12x1
AP0927945
Not Available
8
Rear cylinder head cpl.
AP0613496
Not Available
9
Washer 6,1x9,8x1
AP0927863
Not Available
10
Hex socket screw
AP0240331
Not Available
11
Self-tap screw M5x12
AP0941935
Not Available
12
Camshaft sensor cpl.
AP0274060
Not Available
13
Washer 6,2x12x1
AP0927945
Not Available
14
Hex socket screw M6x30
AP0840880
$3,65 Unit Price incl. VAT
15
Exhaust valve 31mm
AP0254021
Not Available
16
Intake valve 38 mm
AP0254295
Not Available
17
Valve spring plate
AP0253965
$9,50 Unit Price incl. VAT
18
Valve stem seal
AP0230510
Not Available
19
Ext. valve spring
AP0239520
Not Available
20
Int. valve spring
AP0239510
$20,41 Unit Price incl. VAT
21
Valve spring plate
AP0253956
Not Available
22
Valve half-cone
AP0253645
Not Available
23
Cable protection
AP0251090
Not Available
24
Valve lifter bucket
AP0253990
Not Available
25
Washer 6,2x12x1
AP0927945
Not Available
26
Hex socket screw M6x30
AP0840880
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
