1
Engine displacement
1000
2
Model
TUONO
3
Year
2002
4
Trim
RSV 1000 Tuono
5
Parts Catalog
Steering
6

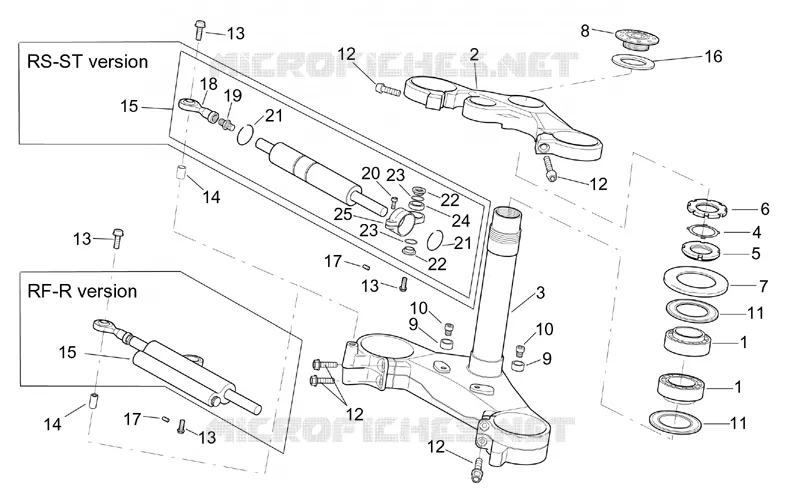

Parts Diagram
Parts Catalog
Frame III
by
Turn indicators
Steering
1
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
12
12
12
13
13
13
13
14
14
15
15
16
17
17
18
19
20
21
21
22
22
23
23
24
25
1
Axial ball bearing
AP8110077
$37,80 Unit Price incl. VAT
2
Fork upper plate
AP8163265
Not Available
2
Fork upper plate
AP8163192
Not Available
2
Fork upper plate
AP8163208
Not Available
3
Stem base
AP8123928
Not Available
3
Stem base
AP8123640
$309,86 Unit Price incl. VAT
4
Steering security plate
AP8121207
$5,38 Unit Price incl. VAT
5
Ring nut
AP8123642
$10,64 Unit Price incl. VAT
6
Return ring nut
AP8123643
$10,64 Unit Price incl. VAT
7
Dust cover ring
AP8123644
$1,01 Unit Price incl. VAT
8
Upper plate fixing bush
AP8121346
$18,12 Unit Price incl. VAT
9
Steering lock bush
AP8121302
$3,65 Unit Price incl. VAT
10
Hex socket screw M8x16
AP8150211
$3,65 Unit Price incl. VAT
11
Dust cover ring
AP8123641
$8,12 Unit Price incl. VAT
12
Screw w/ flange
AP8152289
$3,65 Unit Price incl. VAT
13
Screw w/ flange M6x30
AP8152281
$1,70 Unit Price incl. VAT
14
Spacer *
AP8121041
$3,65 Unit Price incl. VAT
15
Steering shock absorber Sachs
AP8123645
Not Available
15
Steering shock absorber Ohlin
AP8123972
Not Available
16
Stem plug washer
AP8152384
$1,70 Unit Price incl. VAT
17
Dowel
AP8150490
$3,65 Unit Price incl. VAT
18
Articulated head
AP8123865
Not Available
19
Steering shockabs.union
AP8121236
Not Available
20
Hex socket screw
AP8152040
$3,65 Unit Price incl. VAT
21
Circlip
AP8123864
Not Available
22
T bush
AP8121233
$3,65 Unit Price incl. VAT
23
O-ring 119
AP8220149
$3,65 Unit Price incl. VAT
24
Ball joint
AP8123866
Not Available
25
Steering shockabs. collar
AP8121235
$43,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
