1
Engine displacement
1000
2
Model
TUONO
3
Year
2005
4
Trim
RSV 1000 Tuono
5
Parts Catalog
Frame III
6

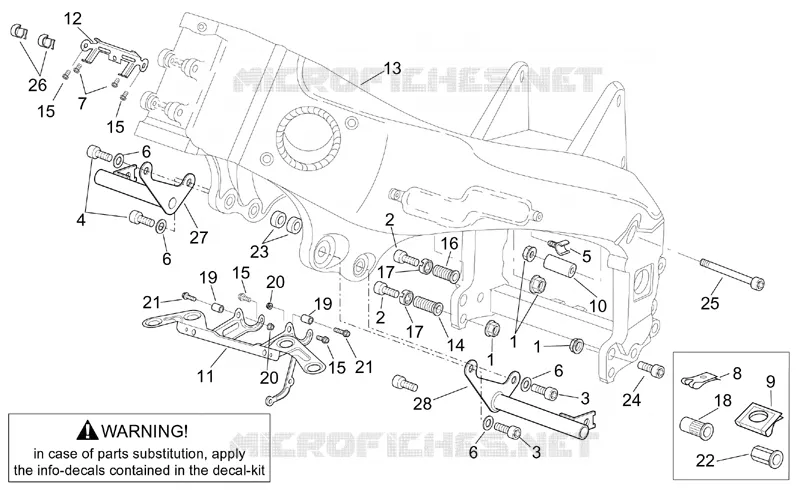

Parts Diagram
Parts Catalog
Saddle
by
Steering
Frame III
1
1
1
2
2
3
3
4
5
6
6
6
6
7
8
9
10
11
12
13
14
15
15
15
15
16
17
17
18
19
19
20
20
21
21
22
23
24
25
26
27
28
1
Self-locking nut
AP8152301
$0,59 Unit Price incl. VAT
2
Hex socket screw M10x105
AP8152013
$6,60 Unit Price incl. VAT
3
Hex socket screw M10x45
AP8150038
$3,65 Unit Price incl. VAT
4
Hex socket screw
AP8150329
$3,65 Unit Price incl. VAT
5
Cable-guide
AP8220269
$5,38 Unit Price incl. VAT
6
Curved spring washer *
AP8150292
$0,34 Unit Price incl. VAT
7
Screw w/ flange M6x16
AP8152246
$0,27 Unit Price incl. VAT
8
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
9
Clip M6
AP8102376
Not Available
10
Upper engine spacer
AP8121998
$3,65 Unit Price incl. VAT
11
Lower water cooler support
AP8134379
$20,60 Unit Price incl. VAT
11
Lower water cooler support
AP8134638
$24,90 Unit Price incl. VAT
12
Water cooler upper support
AP8134380
$10,00 Unit Price incl. VAT
13
Frame
AP8146712
Not Available
13
Frame p.
AP8146773
Not Available
13
Frame
AP8146699
Not Available
13
Frame
AP8146631
Not Available
13
Frame
AP8146711
Not Available
14
Lower adjustment bush
AP8121997
$15,31 Unit Price incl. VAT
15
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
16
Upper adjustment bush
AP8121996
$9,41 Unit Price incl. VAT
17
Eng.connect.elem.ring nut
AP8121995
$6,30 Unit Price incl. VAT
18
Threaded rivet M6
AP8102544
$5,23 Unit Price incl. VAT
19
Conical bush
AP8121313
$3,65 Unit Price incl. VAT
20
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
21
Screw w/ flange M6x30
AP8152281
$1,70 Unit Price incl. VAT
22
Hex threaded insert
AP8102902
$3,65 Unit Price incl. VAT
23
LH front engine spacer
AP8121254
$3,65 Unit Price incl. VAT
24
Hex socket screw M10x80
AP8150192
$3,65 Unit Price incl. VAT
25
Hex socket screw M10x110*
AP8150040
$4,36 Unit Price incl. VAT
26
Black cable guide
AP8201727
$0,34 Unit Price incl. VAT
27
RH fairing connecting plate
AP8134893
Not Available
28
LH fairing connecting plate
AP8134892
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
