1
Engine displacement
1000
2
Model
TUONO
3
Year
2005
4
Trim
RSV 1000 Tuono
5
Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Acc. - Performance parts III
by
Frame I

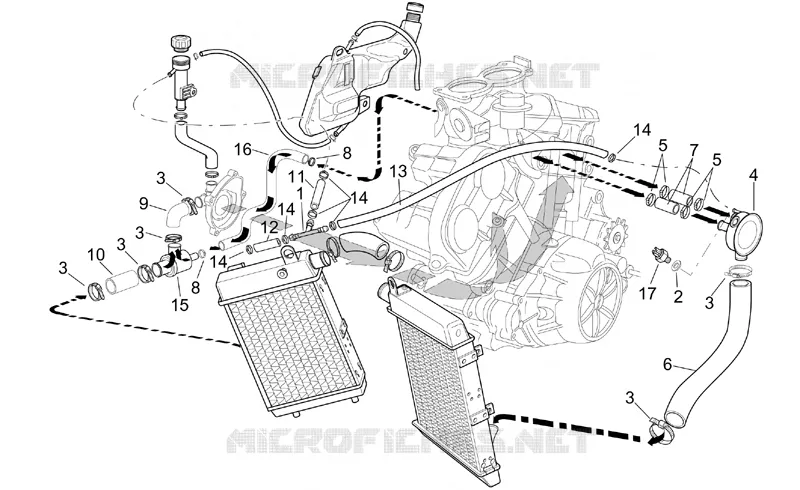

Cooling system
1
2
3
3
3
3
3
3
4
5
5
6
7
7
8
9
10
11
12
13
14
14
14
14
15
16
17
1
3-way union
AP8102431
$6,30 Unit Price incl. VAT
2
Aluminium washer
AP8121837
$3,65 Unit Price incl. VAT
3
Hose clamp
AP8104097
$5,38 Unit Price incl. VAT
4
Three-way manifold
AP8102677
Not Available
5
Hose clamp 17-25
AP8102732
$3,65 Unit Price incl. VAT
6
Water hose manifold/cooler
AP8120978
$11,69 Unit Price incl. VAT
7
Engine-manifold pipe
AP8120979
$5,38 Unit Price incl. VAT
8
Hose clip D23,5x8*
AP8101927
$5,38 Unit Price incl. VAT
9
Thermostat-pump pipe
AP8144033
$49,51 Unit Price incl. VAT
10
Thermostat-cooler pipe
AP8144034
$7,23 Unit Price incl. VAT
11
Union-manifold breather pipe
AP8144094
$6,30 Unit Price incl. VAT
12
Manifold-union breather pipe
AP8144093
$5,38 Unit Price incl. VAT
13
Manifold breather pipe
AP8144092
$6,30 Unit Price incl. VAT
14
White hose clip d.13x6
AP8102764
$1,86 Unit Price incl. VAT
15
Thermostat valve set 75°C
AP8124929
$54,86 Unit Price incl. VAT
16
Thermostat-engine pipe
AP8120980
$11,69 Unit Price incl. VAT
17
Thermal switch
AP8112939
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
