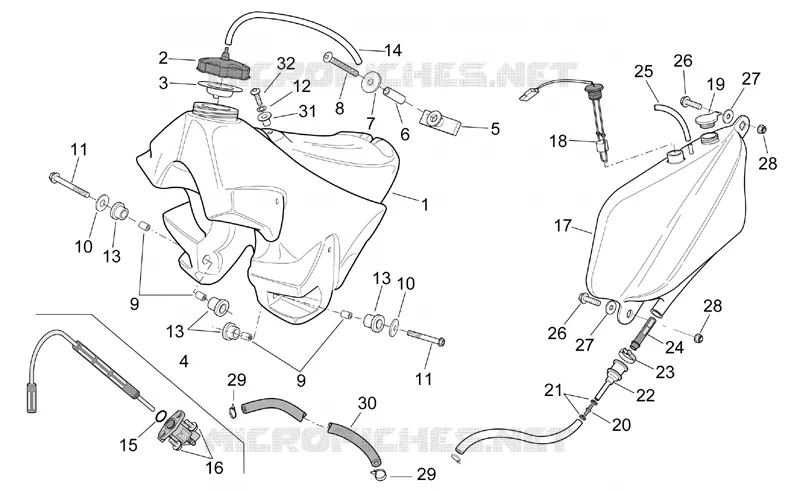

Fuel tank-Oil tank FOR MX SuperMotard FROM 2006

Fuel tank-Oil tank

1

Fuel tank, black

AP8178048

Not Available

2

Cover

AP8220620

$26,74 Unit Price incl. VAT

3

Gasket

AP8120683

Not Available

4

Fuel cock

AP8102808

Not Available

5

Rubber spacer *

AP8120663

$9,24 Unit Price incl. VAT

6

Spacer *

AP8121773

$3,38 Unit Price incl. VAT

7

Washer

AP8150018

$0,34 Unit Price incl. VAT

8

Hex socket screw

AP8152188

Not Available

9

Headlight bush

AP8121718

$3,38 Unit Price incl. VAT

10

Washer 6,6x18x1,6

AP8150016

$0,20 Unit Price incl. VAT

11

Screw w/ flange

AP8152284

$3,65 Unit Price incl. VAT

12

Curved spring washer *

AP8150182

$0,08 Unit Price incl. VAT

13

Rubber spacer *

AP8120675

$5,38 Unit Price incl. VAT

14

pipe 5x9

AP8220402

$4,62 Unit Price incl. VAT

15

O-ring

AP8120798

Not Available

16

Screw w/ flange M6x12

AP8152277

$0,25 Unit Price incl. VAT

17

Oil tank

AP8139113

$90,35 Unit Price incl. VAT

18

Oil reserve indicator

AP8124547

$12,88 Unit Price incl. VAT

19

Oil filler cap

AP8220421

$5,38 Unit Price incl. VAT

20

2-way union

AP8101944

$0,76 Unit Price incl. VAT

21

Hose clip D8x5,5*

AP8101770

$5,38 Unit Price incl. VAT

22

Rubber spacer *

AP8102223

$4,62 Unit Price incl. VAT

23

Hose clip D23,5x8*

AP8101743

$5,38 Unit Price incl. VAT

24

Mixer oil filter

AP8102224

$4,62 Unit Price incl. VAT

25

Oil breather pipe

AP8220384

Not Available

26

Screw w/ flange M6x16

AP8152278

$1,77 Unit Price incl. VAT

27

Washer 6,6x18x1,6*

AP8150015

$0,16 Unit Price incl. VAT

28

Low self-locking nut

AP8150430

$0,16 Unit Price incl. VAT

29

Hose clamp D 11,9

AP8201358

$0,34 Unit Price incl. VAT

30

Fuel pipe D7x12

AP8120954

Not Available

31

T bush

AP8221023

$0,93 Unit Price incl. VAT

32

Hex socket screw M6x20

AP8152137

$0,23 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
