1
Engine displacement
125
2
Model
MX
3
Year
2006
4
Trim
MX SuperMotard
5
Parts Catalog
Cylinder - Exhaust valve
6
Parts Diagram
Parts Catalog
Carburettor flange
by
Transmission 6 speed

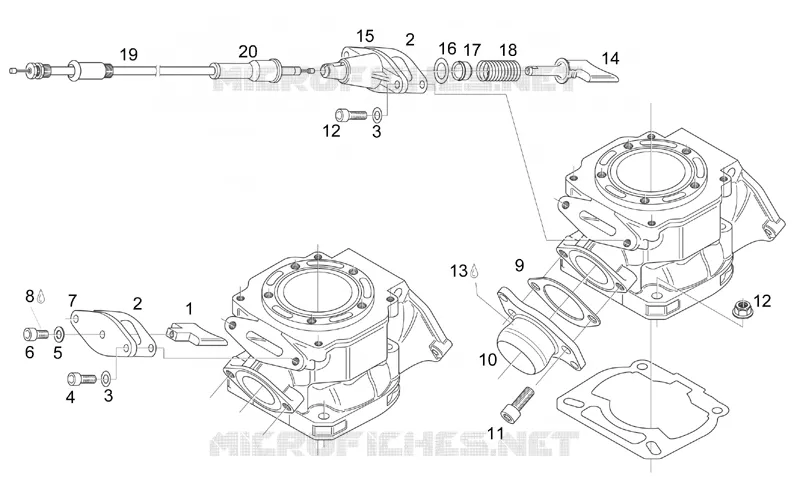

Cylinder - Exhaust valve
1
2
2
3
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
1
Exhaust valve
AP0253373
Not Available
2
Gasket 0,8
AP0250975
$7,94 Unit Price incl. VAT
3
Spring washer B6
AP0845020
$3,65 Unit Price incl. VAT
4
Hex socket screw M6x16
AP0241236
$3,65 Unit Price incl. VAT
5
Washer 6,4
AP0827961
Not Available
6
Hex socket screw M6x25
AP0840861
$3,65 Unit Price incl. VAT
7
Fixing plate
AP0253500
$17,29 Unit Price incl. VAT
8
Loctite (green) 648 5gr.
AP0899788
Not Available
9
Gasket
AP0250271
$22,83 Unit Price incl. VAT
10
Exhaust flange cpl.
AP0273970
Not Available
11
Hex socket screw M8x20
AP0240071
$0,82 Unit Price incl. VAT
12
Flanged nut M8
AP0242705
Not Available
13
Loctite Anti Seize 50ml.15378
AP0297434
Not Available
14
Exhaust valve
AP0253722
$256,43 Unit Price incl. VAT
15
Valve body
AP0253465
$142,32 Unit Price incl. VAT
16
O-ring 13,3x2,4
AP0230880
$5,20 Unit Price incl. VAT
17
Valve stem seal
AP0230810
Not Available
18
Spring
AP0239052
Not Available
19
Elect.rave valve cable
AP8114175
Not Available
20
Rubber cap
AP0860460
$13,47 Unit Price incl. VAT
21
Hex socket screw M6x20
AP0241930
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
