Engine displacement
50
2
Model
RX
3
Year
2003
4
Trim
RX
5
Parts Catalog
Rear body
6
Parts Diagram
Parts Catalog
Saddle
by
Dashboard
Rear body
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
19
19
19
20
21
22
23
24
25
26
27
28
1
Protection amortisseur;
AP8226168
$4,98 Unit Price incl. VAT
2
Rear fairing, black
AP8258988
Not Available
2
Rear fairing, red
AP8258842
Not Available
3
Number plate holder, black
AP8226679
Not Available
4
Catadioptre
AP8112560
$2,13 Unit Price incl. VAT
5
Vis bride
AP8152281
$1,70 Unit Price incl. VAT
6
Clip M6
AP8102376
Not Available
7
Rondelle
AP8120276
Not Available
8
Entretoise
AP8121020
$3,65 Unit Price incl. VAT
9
Vis bride M6X16
AP8152278
$1,77 Unit Price incl. VAT
10
Spring washer 6,4x11x0,5*
AP8150429
Not Available
11
Rondelle pour arbres
AP8150450
$0,25 Unit Price incl. VAT
12
Rear handle, black
AP8232955
Not Available
13
"Douille en ""T"""
AP8121728
$6,08 Unit Price incl. VAT
14
"Douille en ""T"""
AP8121075
$3,65 Unit Price incl. VAT
15
Support plaque;
AP8249558
$5,38 Unit Price incl. VAT
16
Ecrou autofr. bas
AP8150430
$0,16 Unit Price incl. VAT
17
Bush
AP8221232
Not Available
18
Reflector, orange
AP8212060
Not Available
19
Rondelle
AP8150382
$0,16 Unit Price incl. VAT
20
Vis
AP8152270
$3,70 Unit Price incl. VAT
21
Vis
AP8152268
$3,38 Unit Price incl. VAT
22
Vis
AP8152043
$0,15 Unit Price incl. VAT
23
Rondelle
AP8150158
$3,65 Unit Price incl. VAT
24
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
25
Ecrou autofr. bas
AP8150204
$0,51 Unit Price incl. VAT
26
Rear reflector support
AP8224517
Not Available
27
Vis à tête bombée à six pans creux
AP8152267
$0,34 Unit Price incl. VAT
28
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT

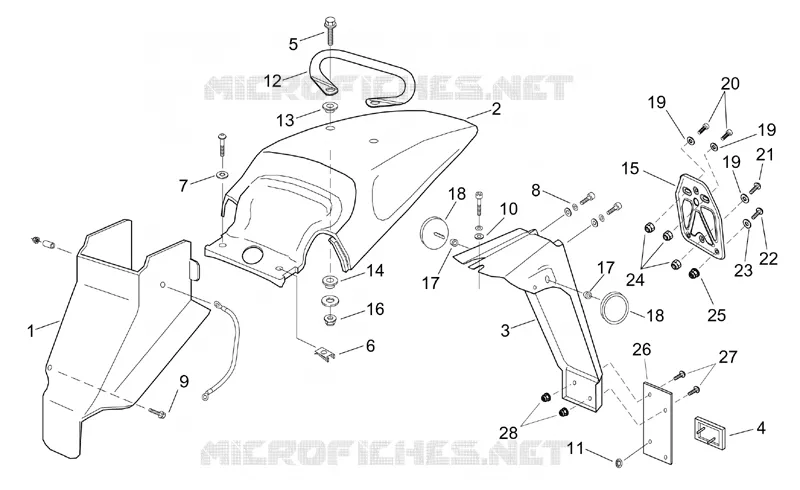

Find the detailed Rear body APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
