Parts Catalog
Swing arm
6
Parts Diagram
Parts Catalog
Front fork
by
Rear shock absorber
Swing arm
1
2
3
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
14
15
16
17
18
18
19
20
21
21
22
1
Swing arm, grey
AP8235136
Not Available
2
Rear swing arm pin+nut
AP8225070
Not Available
3
Bush
AP8220196
Not Available
4
Joint torique
AP8220198
$3,65 Unit Price incl. VAT
5
Bush
AP8220197
Not Available
6
Rondelle
AP8152103
$0,22 Unit Price incl. VAT
7
Nut M14x1,5
AP8152087
Not Available
8
Vis
AP8150154
$0,38 Unit Price incl. VAT
9
Ecrou
AP8150027
$0,07 Unit Price incl. VAT
10
Spacer
AP8221103
Not Available
11
Chain guide plate
AP8220259
Not Available
12
Rondelle pour patin;
AP8234020
$2,74 Unit Price incl. VAT
13
Plaque chaîne
AP8230440
$1,70 Unit Price incl. VAT
14
"Douille en ""T"""
AP8121035
$3,65 Unit Price incl. VAT
15
Vis bride M6X16
AP8152278
$1,77 Unit Price incl. VAT
16
Chain tensioner roller
AP8101375
Not Available
17
Douille
AP8121857
$2,09 Unit Price incl. VAT
18
Rondelle
AP8150018
$0,34 Unit Price incl. VAT
19
Vis bride
AP8152292
$3,65 Unit Price incl. VAT
20
Ecrou autofr. bas
AP8150431
$0,34 Unit Price incl. VAT
21
Guide-câble;
AP8134186
$5,38 Unit Price incl. VAT
22
Lateral stand plate
AP8120651
Not Available

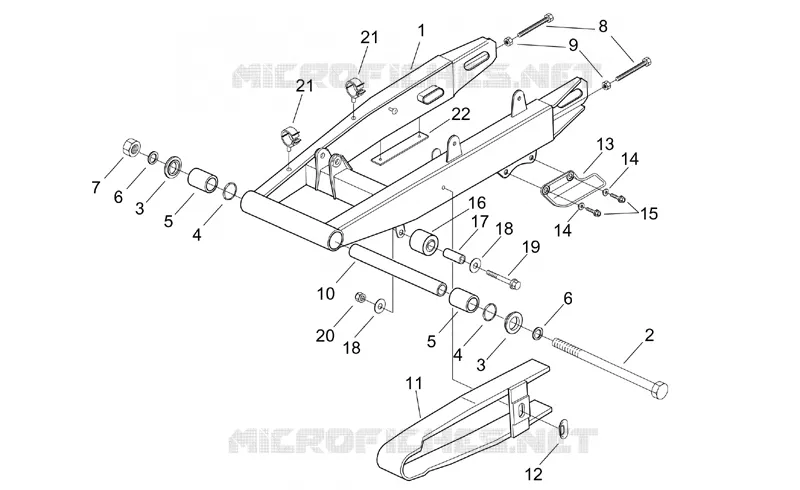

Find the detailed Swing arm APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
