Parts Catalog
Carburettor IV
6
Parts Diagram
Parts Catalog
Carburettor III
by
Carburettor IV
1
1
1
1
2
3
4
5
6
7
8
9
10
11
1
Gasket envelope
AP8206886
Not Available
2
Float kit
AP8206890
Not Available
3
Needle valve GA212
AP8276031
Not Available
4
Main jet 108
AP8276080
Not Available
4
Jet maximum
AP8276034
$11,77 Unit Price incl. VAT
4
Main jet 80
AP8222431
Not Available
5
Idle jet 32
AP8206902
Not Available
5
Idle jet 34
AP8222685
Not Available
6
Jet démarrage
AP8206982
$8,91 Unit Price incl. VAT
7
Float chamber
AP8206889
Not Available
8
Float chamber fixing screw
AP8206887
Not Available
9
Adj.min.eng.spd air scr.spring
AP8206894
Not Available
10
Adj.min.eng.speed air screw
AP8206907
Not Available
11
Kit vis rég.soupape gas
AP8106820
$8,01 Unit Price incl. VAT

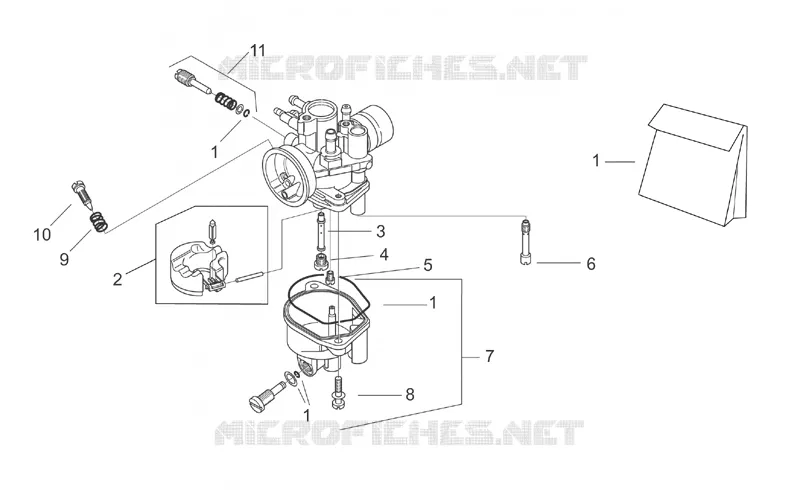

Find the detailed Carburettor IV APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
