Parts Catalog
Carburettor I
6
Parts Diagram
Parts Catalog
Starting shaft
by
Carburettor II
Carburettor I
1
2
3
4
5
6
7
1
Carburettor PHBN 16-NS/R
AP8276047
Not Available
1
Carburettor PHBN 16-NS/R
AP8276079
Not Available
1
Carburettor PHBN 16-NS/R
AP8276030
Not Available
1
Carburettor sha 14-12
AP8206985
Not Available
2
Screw M6x22
AP8206968
Not Available
3
Intake manifold D14
AP8206628
Not Available
3
Intake manifold D20
AP8276032
Not Available
4
Reed valve fix.plate
AP8206242
Not Available
5
Reed valve assy
AP8206300
Not Available
6
Clutch cable anchor bridge
AP8206303
Not Available
7
Screw M6x20
AP8510838
Not Available

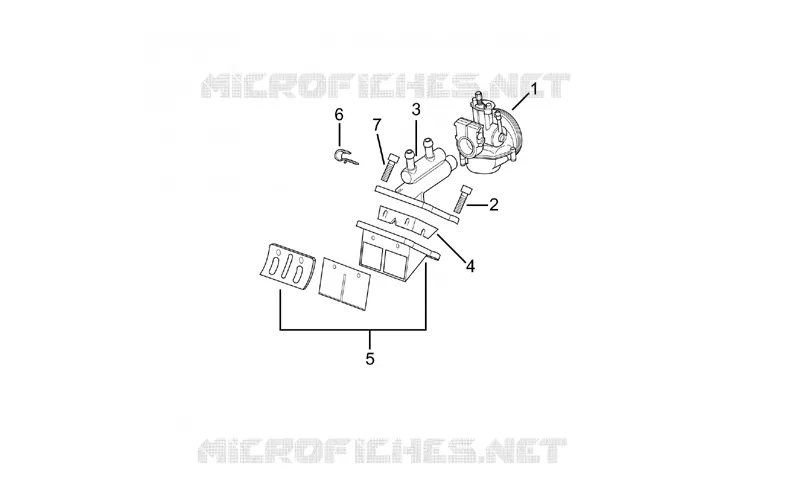

Find the detailed Carburettor I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
