Engine displacement
50
2
Model
RX
3
Year
2003
4
Trim
RX Racing
5
Parts Catalog
Gearbox driven shaft I
6

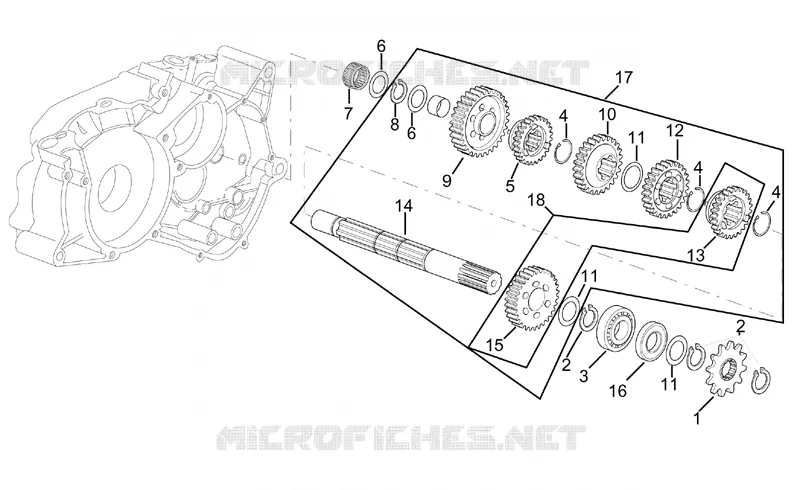

Parts Diagram
Parts Catalog
Primary gear shaft
by
Gearbox driven shaft II
Gearbox driven shaft I
1
2
2
3
4
4
4
5
6
6
7
8
9
10
11
11
11
12
13
14
15
16
17
1
Intermediate gear Z=11
AP8206971
Not Available
2
Outside circlip D20
AP8501477
$3,65 Unit Price incl. VAT
3
Bearing D20x47x14
AP8509135
Not Available
4
Outside circlip D20
AP8507866
Not Available
5
5th wheel gear Z=25
AP8206615
Not Available
6
Washer 14,5X27X0,4
AP8206633
$4,36 Unit Price incl. VAT
7
Roller cage DB14-12
AP8206281
Not Available
8
Outside circlip D14
AP8501478
Not Available
9
1st wheel gear Z=36
AP8206611
Not Available
10
3rd wheel gear Z=29
AP8206613
Not Available
11
Blue steel washer D20,45x28
AP8502501
Not Available
12
4th wheel gear Z=27
AP8206614
Not Available
13
6th wheel gear Z=24
AP8206616
Not Available
14
Secondary gear shaft
AP8206605
Not Available
15
2nd wheel gear Z=33
AP8206612
Not Available
16
Oil seal w/ dust seal
AP8206626
Not Available
17
Secondary shaft cpl. 6 v.ta'
AP8206623
Not Available
