Engine displacement
50
2
Model
RX
3
Year
2003
4
Trim
RX Racing
5
Parts Catalog
Clutch cover
6

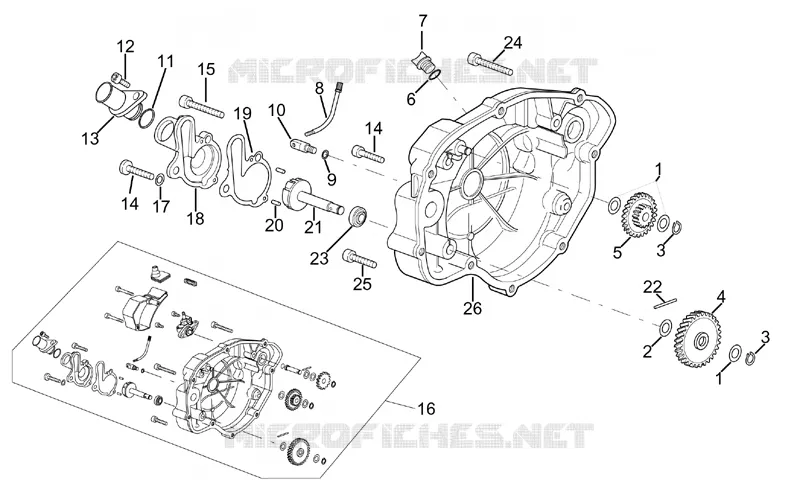

Parts Diagram
Parts Catalog
Clutch
by
Starting shaft
Clutch cover
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
1
Blue steel washer D8,2x15x1
AP8206345
$3,65 Unit Price incl. VAT
2
Blue steel washer D8,4x16
AP8206277
$5,20 Unit Price incl. VAT
3
Outside circlip D8
AP8501467
$3,65 Unit Price incl. VAT
4
Water pump driven gear Z=30
AP8206328
Not Available
5
Idle gear assy Z=13/24
AP8206327
Not Available
6
O-ring D12,3x2,6
AP8206309
Not Available
7
Oil filler plug
AP8206245
Not Available
8
Cable guide+sc.+nut
AP8276027
Not Available
9
Oil plug seal D8x14
AP8502759
Not Available
10
Adjuster bridge
AP8206235
Not Available
11
O-ring D11,8x2,4
AP8206262
$3,65 Unit Price incl. VAT
12
Screw M6x12
AP8206202
Not Available
13
Pump inlet hose
AP8206320
Not Available
14
Screw M6x25
AP8206508
Not Available
15
Screw M6x55
AP8502571
$3,65 Unit Price incl. VAT
16
Clutch cover cpl., cyan
AP8206999
Not Available
17
Oil plug seal D6x12
AP8502758
Not Available
18
Water pump casing, grey
AP8206649
Not Available
19
Water pump body seal
AP8206334
Not Available
20
Pump body roller D4x10
AP8206338
Not Available
21
Water pump shaft+Impeller
AP8206335
Not Available
22
Roller D3x21,8
AP8508669
$3,65 Unit Price incl. VAT
23
Oil seal D10x18x8
AP8509177
Not Available
24
Screw M6x30
AP8502566
$3,65 Unit Price incl. VAT
25
Cap screw+shank M6x6
AP8502555
Not Available
26
Clutch cover+pin
AP8276004
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
