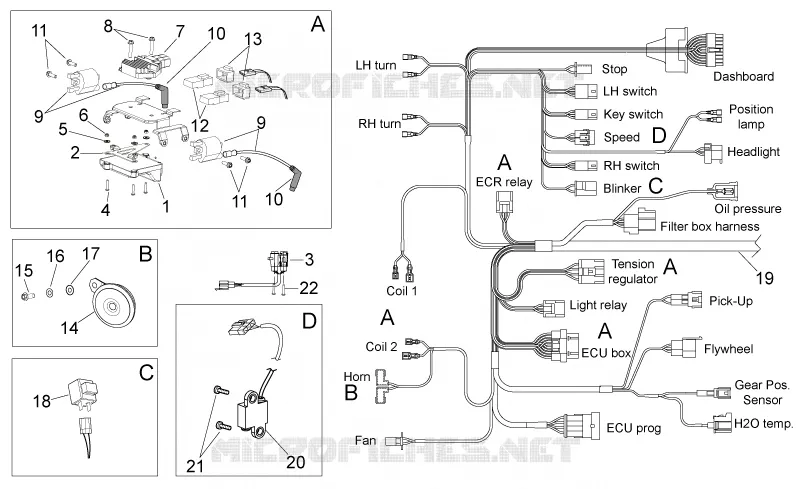

Electrical system I FOR RXV FROM 2009

Electrical system I

1

Electronic control unit

855556

$728,53 Unit Price incl. VAT

2

Control unit support plate

855689

Not Available

3

Indicators assembly

856665

Not Available

4

Hex socket screw M4x20

AP9100945

Not Available

5

Washer 4,3x12x1

AP8150011

$0,25 Unit Price incl. VAT

6

Nut M4

AP8150204

$0,51 Unit Price incl. VAT

7

Voltage regulator

AP9100424

Not Available

8

Screw w/ flange M6x30

AP8152281

$1,70 Unit Price incl. VAT

9

Coil

AP9100429

$138,48 Unit Price incl. VAT

10

Sparkplug cap

AP9100423

$20,25 Unit Price incl. VAT

11

Screw w/ flange

598839

$0,09 Unit Price incl. VAT

12

Relay 12V-30A

AP8224462

$14,17 Unit Price incl. VAT

13

Rubber spacer *

AP8220283

$0,75 Unit Price incl. VAT

14

Horn

AP8127391

Not Available

15

Hex socket screw

AP8152112

$3,65 Unit Price incl. VAT

16

Washer 8,5x15x0,8

AP8150376

$0,08 Unit Price incl. VAT

17

Washer 8,4x16x1,6

AP8150017

$3,65 Unit Price incl. VAT

18

Flasher unit

AP8124235

$14,18 Unit Price incl. VAT

19

Main wiring harness

855623

Not Available

20

Speed sensor

AP9100965

$113,74 Unit Price incl. VAT

21

Self-tapping screw M4x12

AP8150460

$3,65 Unit Price incl. VAT

22

Self-tapping screw

AP8150444

$0,17 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
