1
Engine displacement
450
2
Model
RXV
3
Year
2009
4
Trim
RXV
5
Parts Catalog

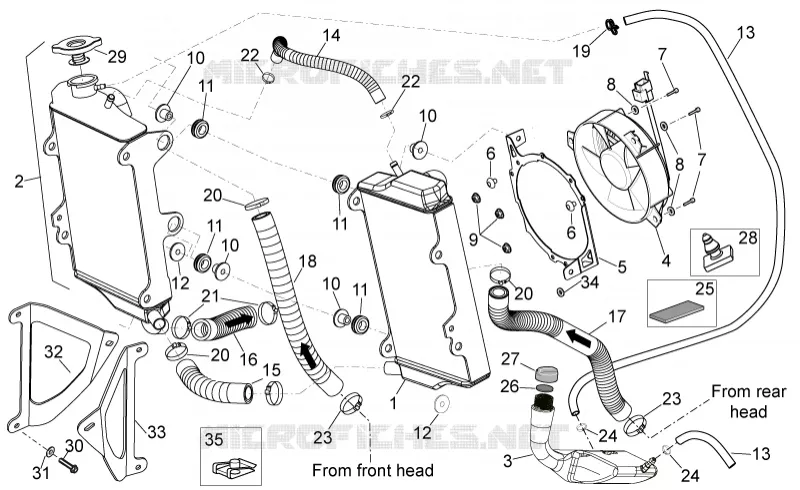

Cooling system
6
Parts Diagram
Parts Catalog
Steering I
by
Controls
Cooling system
1
2
3
4
5
6
6
7
7
8
8
9
10
10
10
10
11
11
11
11
12
12
13
13
14
15
16
17
18
19
20
20
20
21
22
22
23
23
24
24
25
26
27
28
29
30
31
32
33
34
35
1
Water cooler, LH
AP9100348
$206,57 Unit Price incl. VAT
2
Water cooler, RH
AP9100349
$137,26 Unit Price incl. VAT
3
Expansion tank
AP9100506
$223,85 Unit Price incl. VAT
4
Fan, cpl.
AP8124930
Not Available
5
Fan support
855690
$25,82 Unit Price incl. VAT
6
Plug
AP8120876
$5,38 Unit Price incl. VAT
7
Hex socket screw M5x12
AP8152267
$0,34 Unit Price incl. VAT
8
Washer 5,5x15x1,6*
AP8150013
$3,65 Unit Price incl. VAT
9
Low self-locking nut
AP8150451
$0,17 Unit Price incl. VAT
10
Bush
AP9100376
$3,65 Unit Price incl. VAT
11
Silent-block *
AP9100946
$5,38 Unit Price incl. VAT
12
Washer 24,8x6,2x1
AP9100375
Not Available
13
Fuel pipe 5,5x10
AP8220325
Not Available
14
Breather pipe 7,5X3,5
855265
Not Available
14
Breather pipe 7,5X3,5
AP8144506
$8,91 Unit Price incl. VAT
15
pipe 23x15x135
AP9100555
Not Available
15
pipe 23x15x125
CM238403
Not Available
16
Cooler-pump pipe 27x19x145
855266
$63,94 Unit Price incl. VAT
16
Cooler-pump pipe 27x19x145
AP9100557
$6,30 Unit Price incl. VAT
17
pipe 23x15x380
AP9100553
$8,91 Unit Price incl. VAT
17
pipe 23x15x395
CM238401
Not Available
18
pipe 23x15x295
CM238402
Not Available
18
pipe 23x15x295
AP9100554
$7,23 Unit Price incl. VAT
19
Hose clamp
AP8102738
$1,42 Unit Price incl. VAT
20
Hose clip D22x8,6*
AP8201169
$5,38 Unit Price incl. VAT
21
Hose clip D28x8,6*
AP8120536
$3,65 Unit Price incl. VAT
21
Hose clip 26x8
AP9100456
$3,65 Unit Price incl. VAT
22
Hose clip 14,5x8
AP9100714
$3,65 Unit Price incl. VAT
23
Hose clip 21x8
AP9100697
$3,65 Unit Price incl. VAT
24
Hose clip, green D11x6,6x1
AP8120446
$0,75 Unit Price incl. VAT
25
Adhesive sponge 6x30
AP8117041
$5,38 Unit Price incl. VAT
26
Gasket
AP8220191
Not Available
27
Expansion tank plug
AP8104124
$5,38 Unit Price incl. VAT
28
Rubber spacer
AP8120455
$6,30 Unit Price incl. VAT
29
Water cooler filler cap
AP9100948
Not Available
30
Hex socket screw
AP8152226
$3,65 Unit Price incl. VAT
31
Washer 6,4x15x1
AP8152181
$0,07 Unit Price incl. VAT
32
LH water cooler protection
855276
Not Available
33
RH water cooler protection
855277
Not Available
34
Washer 6,6x18x1,6
AP8150016
$0,20 Unit Price incl. VAT
35
Spring plate M6
254485
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
