Engine displacement
150
2
Model
LEONARDO
3
Year
1997
4
Trim
Leonardo
5
Parts Catalog
Carburettor III
6
Parts Diagram
Parts Catalog
Fuel level sensor 96 M.I.B+97
by
Fan
Carburettor III
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Carburettor Bs 26-91
AP8106449
Not Available
1
Carburettor
AP8106291
Not Available
1
Carburettor BS 26-116
AP8106581
Not Available
1
Carburettor BS 26-114
AP8106580
Not Available
1
Carburettor BS 26-115
AP8106582
Not Available
1
Carburettor
AP8106418
Not Available
1
Carburettor BS 26-93
AP8106428
Not Available
2
Joint torique;
AP8106494
$1,17 Unit Price incl. VAT
3
plate
AP8106495
Not Available
4
Flotteur;
AP8106496
$19,22 Unit Price incl. VAT
5
Pivot;
AP8106497
$2,23 Unit Price incl. VAT
6
Gicleur;
AP8106498
$17,88 Unit Price incl. VAT
7
Washer
AP8106499
Not Available
8
Main Jet
AP8106564
Not Available
8
Main Jet
AP8106468
$5,53 Unit Price incl. VAT
9
Gicleur minimum;
AP8106500
$7,22 Unit Price incl. VAT
10
Gasket
AP8106501
Not Available
11
Float chamber
AP8106584
Not Available
11
Float chamber
AP8106526
Not Available
11
Float chamber
AP8106525
Not Available
11
Float chamber
AP8106502
Not Available
12
screw
AP8106503
Not Available
13
screw
AP8106504
Not Available
14
Exhaust pipe
AP8106505
Not Available
15
Needle valve assy
AP8106514
Not Available
16
Vis;
AP8106485
$0,72 Unit Price incl. VAT

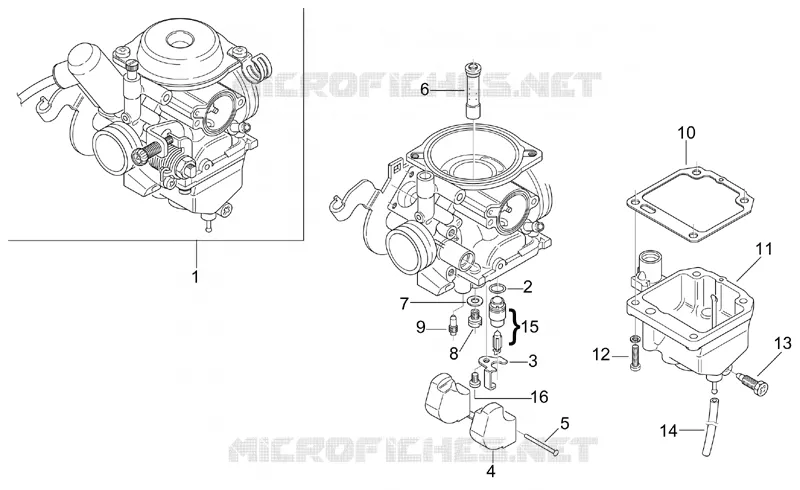

Find the detailed Carburettor III APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
