Parts Catalog
Carburettor II
6
Parts Diagram
Parts Catalog
Pulley assy., driven I
by
Front fork - Sleeves
Carburettor II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Carburettor Bs 26-91
AP8106449
Not Available
1
Carburettor
AP8106291
Not Available
1
Carburettor BS 26-116
AP8106581
Not Available
1
Carburettor BS 26-114
AP8106580
Not Available
1
Carburettor BS 26-115
AP8106582
Not Available
1
Carburettor
AP8106418
Not Available
1
Carburettor BS 26-93
AP8106428
Not Available
2
Adjuster screw
AP8106487
Not Available
3
Gasket
AP8106488
Not Available
4
Spring
AP8106489
Not Available
5
Throttle lever
AP8106490
Not Available
6
Spring
AP8106491
Not Available
7
Ring
AP8106492
Not Available
8
Washer
AP8122861
Not Available
9
Nut
AP8122816
Not Available
10
screw
AP8106493
Not Available
11
screw
AP8106506
Not Available
12
Throttle-valve
AP8106507
Not Available
13
Maintenance
AP8106513
Not Available
14
Maintenance
AP8106516
Not Available
15
Throttle valve adjuster shaft
AP8106530
Not Available
15
Throttle valve adjuster shaft
AP8106512
Not Available
16
Ring
AP8106509
Not Available
17
Filter cpl.
AP8106483
Not Available
18
Choke valve
AP8106527
Not Available
18
Choke valve
AP8106484
Not Available
19
Vis;
AP8106485
$0,72 Unit Price incl. VAT
20
plate
AP8106486
Not Available
21
screw
AP8106510
Not Available
22
Circlip
AP8106529
Not Available
22
Ring
AP8106511
Not Available

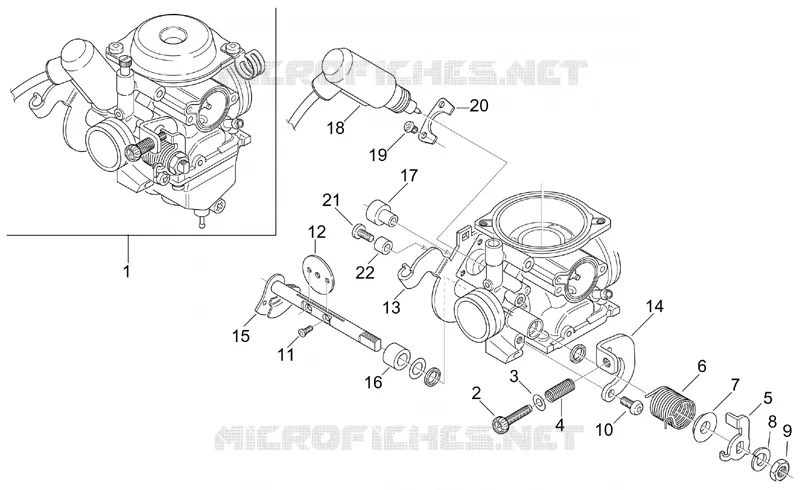

Find the detailed Carburettor II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
