Front wheel for APRILIA SXV from 2009

Front wheel

1

Pneu AV DUNLOP SPORTMAX 120/70 ZR17 73W

85156R

$380,03 Unit Price incl. VAT

2

Inner tube 17"

AP8109306

Not Available

3

Flap

AP8109309

$15,98 Unit Price incl. VAT

4

Front wheel 3,5X17"

AP9100561

Not Available

4

Front wheel 3,5X17"

855802

Not Available

5

Bouchon

AP9100171

$10,76 Unit Price incl. VAT

6

Front hub

AP9100225

$307,25 Unit Price incl. VAT

7

Ball bearing 25x42x9

AP9100216

Not Available

8

Gasket ring 28x42x7

AP9100228

Not Available

9

Gasket ring 32x42x7

AP9100227

Not Available

10

Entretoise interne

AP9100226

$10,95 Unit Price incl. VAT

11

Rayon

AP9100106

$5,38 Unit Price incl. VAT

12

Nipples

AP8108672

$6,30 Unit Price incl. VAT

13

Bague;

AP8121334

$3,65 Unit Price incl. VAT

14

Front brake disc d.320

AP9100528

Not Available

15

Hex screw M6x16

855720

Not Available

15

VIS TE M 6 X 16

AP8150070

$3,65 Unit Price incl. VAT

16

Douille entretoise externe

AP9100229

$15,31 Unit Price incl. VAT

17

Front wheel spindle L=221,5

855203

Not Available

18

Spring washer 6,4x11x0,5*

AP8150429

Not Available

19

Front wheel 17"

B045117

Not Available

19

Front wheel 17"

851064

Not Available

20

Spacer

AP9100318

Not Available

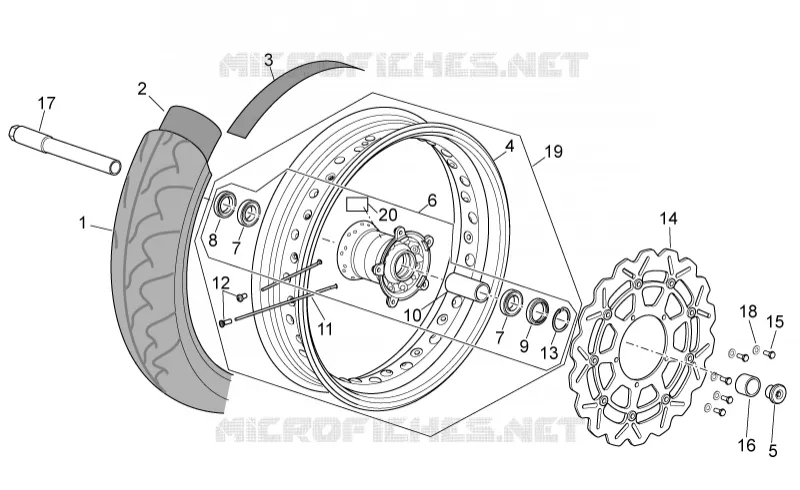

Find the detailed Front wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
