Parts Catalog
Front lights
6
Parts Diagram
Parts Catalog
Front fork I
by
Transmission shaft
Front lights
1
2
2
3
3
4
4
5
6
7
7
8
9
10
10
11
12
12
12
12
1
Phare avant
859702
$88,92 Unit Price incl. VAT
1
Phare avant;
855038
$89,17 Unit Price incl. VAT
2
Rondelle fer plate
AP8152181
$0,07 Unit Price incl. VAT
3
Vis
AP8152108
$0,16 Unit Price incl. VAT
4
Douille
AP8121032
$0,59 Unit Price incl. VAT
5
Câblage feu
856610
$21,52 Unit Price incl. VAT
6
AMPOULE 12V-60/55W H4 -> 437327
292723
$10,39 Unit Price incl. VAT
7
Lampe RY10W 12V
AP8127489
$6,35 Unit Price incl. VAT
8
LH front/RH rear turn indic.
855140
Not Available
9
Adaptatur
855139
$29,77 Unit Price incl. VAT
10
Rondelle
AP8150017
$3,65 Unit Price incl. VAT
11
Low nut
AP8152262
Not Available
12
Vis
AP8152137
$0,23 Unit Price incl. VAT

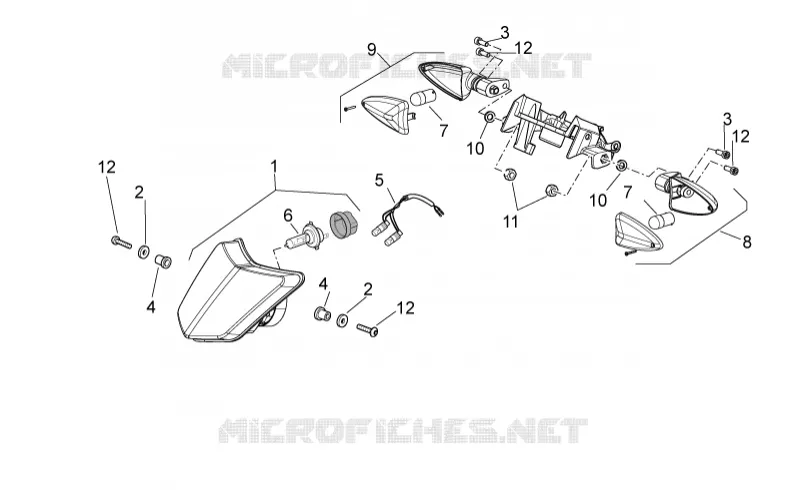

Find the detailed Front lights APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
