1
Engine displacement
125
2
Model
ATLANTIC
3
Year
2003
4
Trim
Atlantic
5
Parts Catalog
Headlight
6

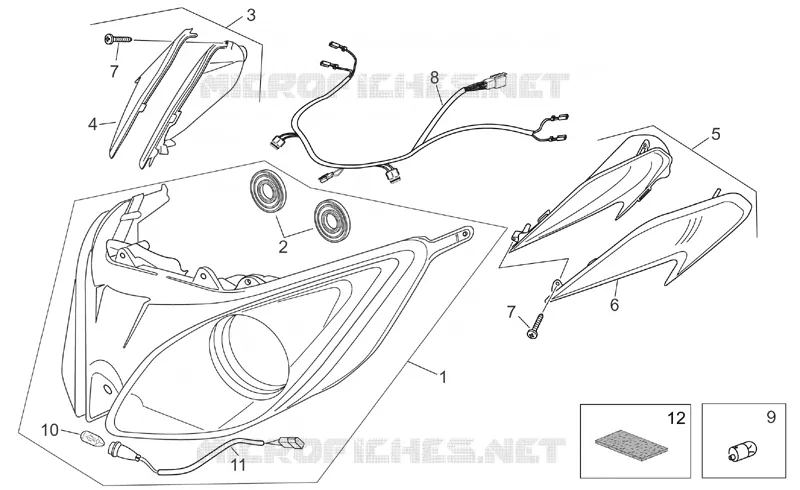

Parts Diagram
Parts Catalog
Variator cover
by
Toothed pulley
Headlight
1
2
3
4
5
6
7
7
8
9
10
11
12
1
Headlight
854894
$352,35 Unit Price incl. VAT
1
Headlight
854895
Not Available
2
Front headlight guard
AP8127442
$10,76 Unit Price incl. VAT
3
RH front turn indicator
AP8127272
$28,35 Unit Price incl. VAT
4
RH Turn indicator f.lens
AP8127443
$20,60 Unit Price incl. VAT
5
LH front turn indicator
AP8127258
Not Available
6
LH front turn indicator lens
AP8127444
Not Available
7
Self-tap screw 3,5x13
AP8121643
Not Available
8
Headlight wiring w/harness
AP8127248
Not Available
9
Lamp RY10W 12V
AP8127489
$6,35 Unit Price incl. VAT
10
Lamp W16W 12V 16W
AP8127490
$9,18 Unit Price incl. VAT
11
Town lights switch wiring
AP8127488
$15,66 Unit Price incl. VAT
12
Gasket
AP8144529
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
