1
Engine displacement
125
2
Model
ATLANTIC
3
Year
2003
4
Trim
Atlantic
5
Parts Catalog

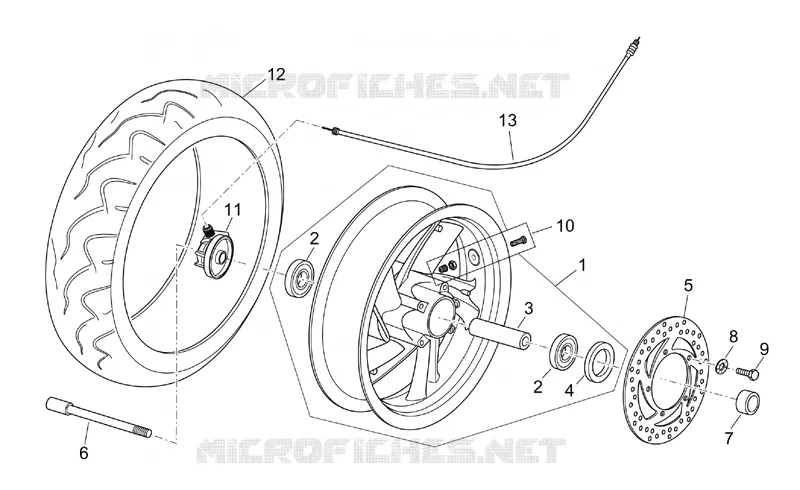

Front wheel
6
Parts Diagram
Parts Catalog
Central body
by
Front body II
Front wheel
1
2
2
3
4
5
6
7
8
9
10
11
12
13
1
Front wheel Silver
AP8128106
Not Available
1
Front wheel Silver
AP8108991
Not Available
2
Bearing
AP8225123
$21,37 Unit Price incl. VAT
3
Wheel internal spacer
AP8133605
$10,95 Unit Price incl. VAT
3
Wheel internal spacer
AP8128105
Not Available
4
Gasket ring
AP8125782
$18,12 Unit Price incl. VAT
5
Front brake disc
AP8133606
$35,10 Unit Price incl. VAT
6
Front wheel spindle
AP8225361
Not Available
7
Front wheel spacer
AP8121588
$8,01 Unit Price incl. VAT
8
Washer
AP8225206
Not Available
9
screw
AP8133607
$3,65 Unit Price incl. VAT
9
Hex socket screw M6x20
AP8152137
$0,23 Unit Price incl. VAT
10
Tubeless tyre valve
AP8202168
$5,38 Unit Price incl. VAT
10
Tubeless tyre valve
AP8201546
$5,38 Unit Price incl. VAT
11
Odometer gear
AP8104402
Not Available
12
Tyre
0000000
Not Available
13
Odometer cable
AP8114460
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
