Engine displacement
125
2
Model
ATLANTIC
3
Year
2006
4
Trim
Atlantic
5
Parts Catalog
Rear electrical system II
6
Parts Diagram
Parts Catalog
Rear electrical system I
by
Lock hardware kit
Rear electrical system II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
20
21
22
1
Relais démarrage
AP8124636
$21,09 Unit Price incl. VAT
2
Relais 12V/30A
AP8224462
$14,17 Unit Price incl. VAT
3
Fairlead
AP8161157
Not Available
4
El.components support
AP8179526
Not Available
5
Voltage regulator
AP8127809
Not Available
6
BATTERIE YUASA 12V-12 AH YB12 AL-A2
AP8112920
$131,36 Unit Price incl. VAT
7
Breather pipe 4x8
AP8220263
Not Available
8
Vis bride
AP8152282
$0,51 Unit Price incl. VAT
9
Plate light wiring
AP8124765
Not Available
10
Caoutchouc p-fusibles
AP8112811
$6,40 Unit Price incl. VAT
11
Caoutchouc p-fusibles
AP8120754
$6,30 Unit Price incl. VAT
12
Fuse 15A
AP8112176
$5,38 Unit Price incl. VAT
13
Fuse 20A
AP8112506
Not Available
14
Caoutchouc
AP8220283
$0,75 Unit Price incl. VAT
15
Vis bride M6X16
AP8152278
$1,77 Unit Price incl. VAT
16
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
17
Socket
AP8124768
Not Available
18
Capuchon borne
AP8120218
$5,38 Unit Price incl. VAT
19
Ecrou
AP8150026
$0,16 Unit Price incl. VAT
20
Spring washer 6,4x11x0,5*
AP8150429
Not Available
21
Support p-fusibles;
AP8234094
$18,75 Unit Price incl. VAT
22
Vis bride
AP8152272
$0,08 Unit Price incl. VAT

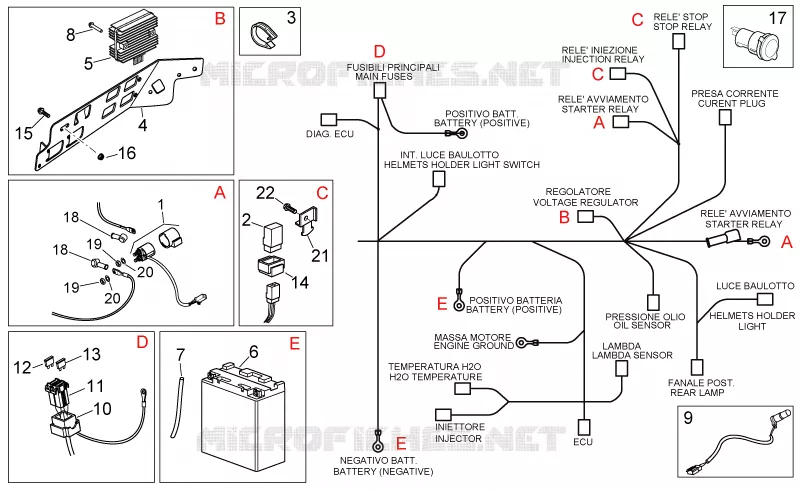

Find the detailed Rear electrical system II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
