Engine displacement
125
2
Model
ATLANTIC
3
Year
2006
4
Trim
Atlantic
5
Parts Catalog
Carburettor III
6
Parts Diagram
Parts Catalog
Carburettor II
by
Throttle body
Carburettor III
1
2
3
4
5
6
7
8
9
9
1
Air intake
AP8577081
Not Available
2
Hose clamp
AP8580220
Not Available
3
screw
AP8580025
Not Available
4
screw
AP8580016
Not Available
5
screw
AP8580027
Not Available
6
Heater
AP8575052
Not Available
7
Spring
AP8580026
Not Available
8
pipe
AP8580146
Not Available
9
Hose clamp
AP8575004
Not Available

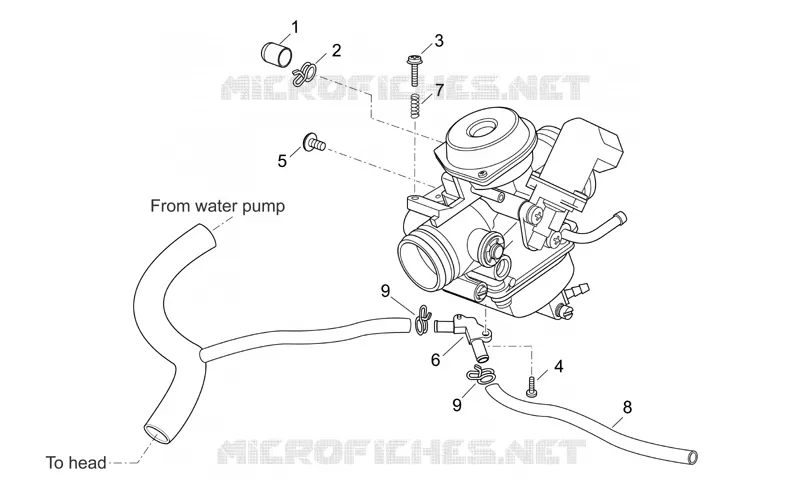

Find the detailed Carburettor III APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
