Rear body II for APRILIA Atlantic from 2008

Rear body II

1

Rear fairing, grey

AP8179001

Not Available

1

Rear fairing, black

AP8184580

Not Available

1

Rear fairing, grey

AP8179721

Not Available

1

Rear fairing, black

AP8179781

Not Available

1

Rear fairing, blue

AP8268999

Not Available

1

Coffre ar., gris

AP8179760

$83,71 Unit Price incl. VAT

1

Rear fairing, blue

AP8179770

Not Available

2

Porte-plaque gris;

AP8126961

$22,29 Unit Price incl. VAT

3

Poignée pass.silver

AP8179722

$379,94 Unit Price incl. VAT

4

Luggage rack cover, grey

AP8179723

Not Available

4

Luggage rack cover, black

AP8179784

Not Available

4

Luggage rack cover, blue

AP8179773

Not Available

4

Luggage rack cover, grey

AP8179002

Not Available

5

Bouchon d.

AP8179724

$0,82 Unit Price incl. VAT

6

Bouchon gauche

AP8179725

$0,82 Unit Price incl. VAT

7

Feu de plaque;

AP8127261

$17,07 Unit Price incl. VAT

8

Vis taraud pour plast. Inox

AP8150413

$0,08 Unit Price incl. VAT

9

Catadioptre arrière, rouge

AP8124718

$4,12 Unit Price incl. VAT

10

Rondelle

AP8150159

$3,65 Unit Price incl. VAT

11

Ecrou autofr. bas

AP8150204

$0,51 Unit Price incl. VAT

12

Vis bride

AP8152293

$3,70 Unit Price incl. VAT

13

Rondelle

AP8150018

$0,34 Unit Price incl. VAT

14

Bush

AP8121635

Not Available

15

Vis bride

AP8152283

$0,32 Unit Price incl. VAT

16

Vis bride

AP8152298

$0,21 Unit Price incl. VAT

17

Plaque "Aprilia"

AP8177261

$12,81 Unit Price incl. VAT

18

Biadhesive

852183

Not Available

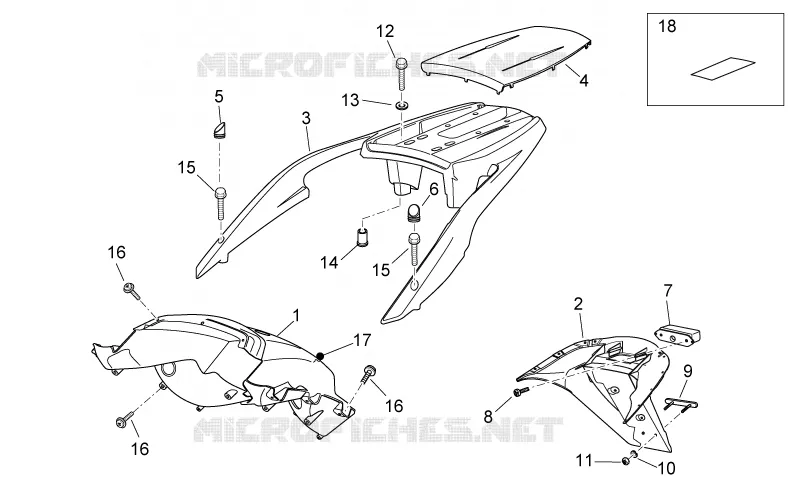

Find the detailed Rear body II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
