Lock hardware kit for APRILIA Atlantic from 2008

Lock hardware kit

1

Kit serrure

AP8104418

$40,50 Unit Price incl. VAT

2

Serrure selle

AP8104611

$31,21 Unit Price incl. VAT

3

Front box lock

AP8104612

$25,38 Unit Price incl. VAT

4

Serrure trappe ess.

AP8104609

$25,82 Unit Price incl. VAT

5

Bloc démarreur-bloc

AP8104610

$182,14 Unit Price incl. VAT

6

"Clé ""Aprilia"" sans transpo."

AP8104613

$8,91 Unit Price incl. VAT

7

Lock cable

AP8104422

$14,30 Unit Price incl. VAT

8

Pl.fix.selle pass.

AP8102947

$15,98 Unit Price incl. VAT

9

Vis

AP8150137

$3,70 Unit Price incl. VAT

10

Vis à arrachement

AP8152140

$3,65 Unit Price incl. VAT

11

Vis bride

AP8152246

$0,27 Unit Price incl. VAT

12

Levier

AP8201620

$5,38 Unit Price incl. VAT

13

Vis

AP8201749

$0,16 Unit Price incl. VAT

14

Rondelle évent.

AP8221312

$0,34 Unit Price incl. VAT

15

Rondelle

AP8201748

$0,14 Unit Price incl. VAT

16

Ecrou bas

AP8152194

$1,10 Unit Price incl. VAT

17

Ecrou serrure

AP8102523

$8,01 Unit Price incl. VAT

18

Joint bloc démarr.

AP8127461

$1,29 Unit Price incl. VAT

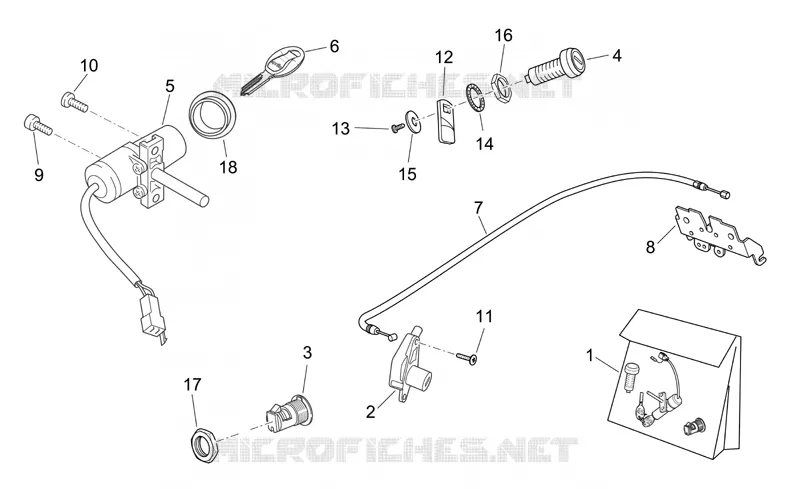

Find the detailed Lock hardware kit APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
