1
Engine displacement
250
2
Model
ATLANTIC
3
Year
2006
4
Trim
Atlantic
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Expansion tank
by
Supply I

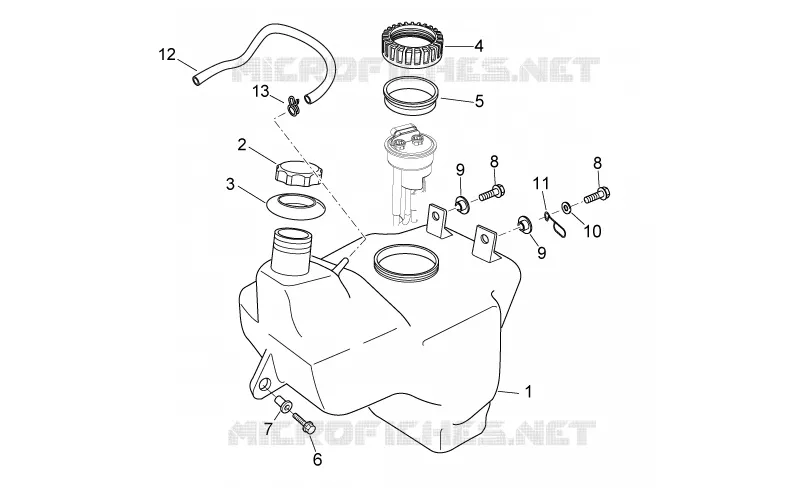

Fuel tank
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
1
Fuel tank
AP8158357
Not Available
2
Fuel filler cap
AP8201757
$6,30 Unit Price incl. VAT
3
Gasket ring
AP8102605
$5,20 Unit Price incl. VAT
4
Ring nut
AP8158359
$8,91 Unit Price incl. VAT
5
Gasket
AP8144422
$5,38 Unit Price incl. VAT
6
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
7
T bush
AP8121728
$6,08 Unit Price incl. VAT
8
Screw w/ flange M5x15
AP8152273
$0,16 Unit Price incl. VAT
9
T bush *
AP8221145
$3,65 Unit Price incl. VAT
10
Washer 5,5x15x1,6*
AP8150013
$3,65 Unit Price incl. VAT
11
Cable-guide
AP8202159
$5,38 Unit Price incl. VAT
12
pipe 5x9
AP8220402
$4,62 Unit Price incl. VAT
13
Hose clamp D10,1
AP8101595
$0,32 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
