1
Engine displacement
125
2
Model
ATLANTIC
3
Year
2011
4
Trim
Atlantic E3
5
Parts Catalog

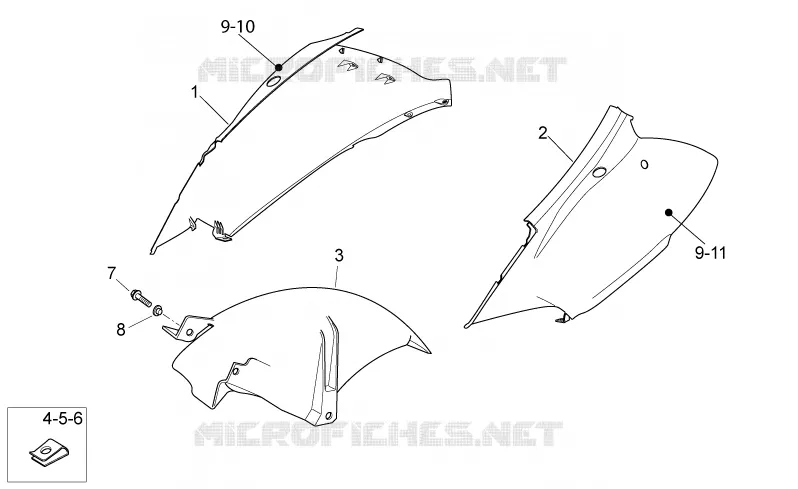

Rear body I
6
Parts Diagram
Parts Catalog
Front body III
by
Variator cover
Rear body I
1
2
3
4
5
6
7
8
9
9
10
11
1
RH rear fairing, blue
67701400XD2
Not Available
1
RH rear fairing, grey
67701400XH2
$179,10 Unit Price incl. VAT
1
Right tail fairing complete with decal
67701400Z1
Not Available
1
RH rear fairing, black
67701400XN2
Not Available
2
LH rear fairing, black
67701500XN2
$180,03 Unit Price incl. VAT
2
LH rear fairing, blue
67701500XD2
Not Available
2
Left tail fairing complete with decal
67701500Z1
Not Available
2
LH rear fairing, grey
67701500XH2
Not Available
3
Rear mudguard, black
AP8156023
Not Available
4
Spring plate M6
254485
$0,34 Unit Price incl. VAT
5
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
6
Screw clip D5,5*
AP8201763
$3,65 Unit Price incl. VAT
7
Screw w/ flange M6x30
AP8152281
$1,70 Unit Price incl. VAT
8
T bush
AP8121795
$3,38 Unit Price incl. VAT
9
Name plate Atlantic
677004
Not Available
10
Rear side right band decal
67700900A1
$7,67 Unit Price incl. VAT
10
Sticker RH
677009
$10,77 Unit Price incl. VAT
11
Rear side left band decal
67701000A1
Not Available
11
Sticker LH
677010
$10,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
